Pictures of DataMite Sensors and Options, continued

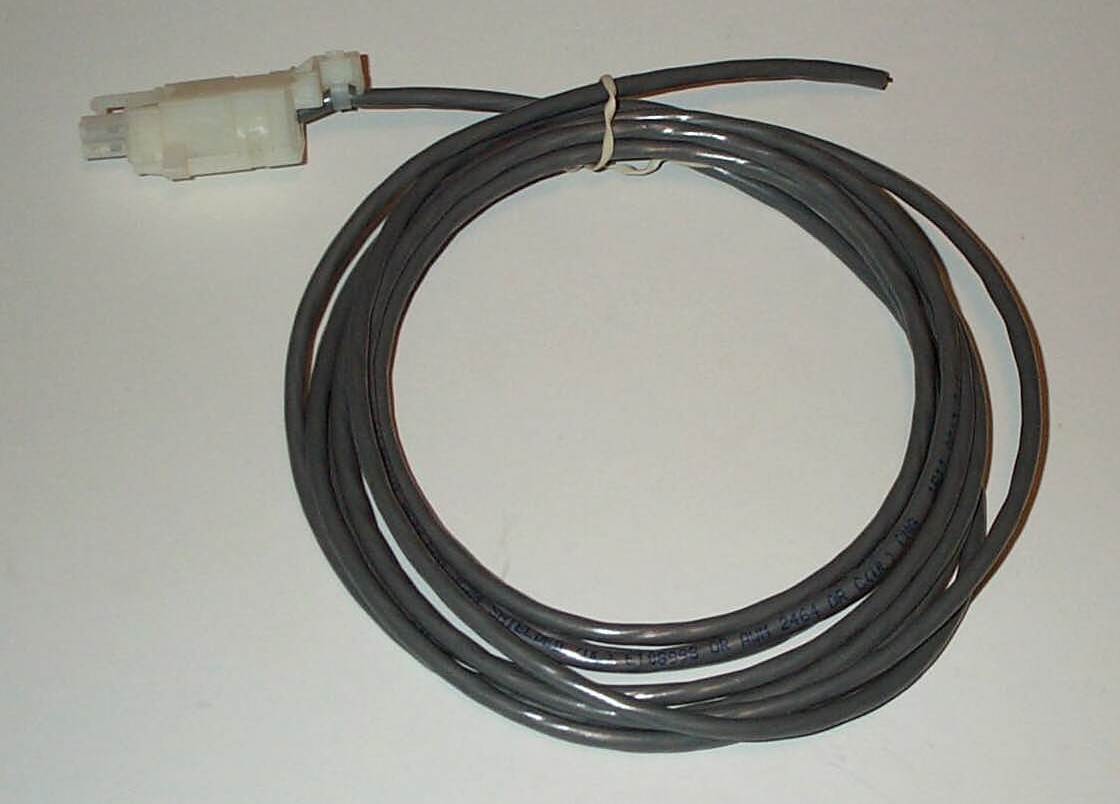

Standard Analog Lead (with 4 pin Molex connector) Connects to Std DataMite Analog Breakout Harness

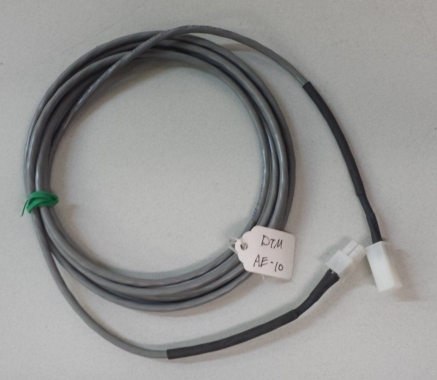

DT2-AE10  Standard 10 ft Analog Extension cable with 4 pin female and 4 pin male connectors on the ends

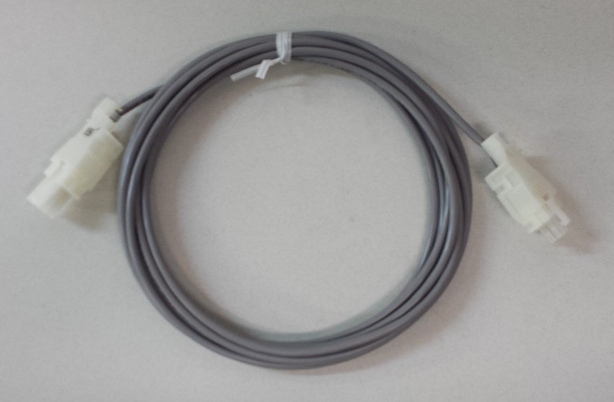

DT2-RE15  Standard 15 ft RPM Extension cable with 6 pin female and 6 pin male connectors on the ends (DTM-LDR15 RPM lead is similar, but without female connector shown on left side of this picture)

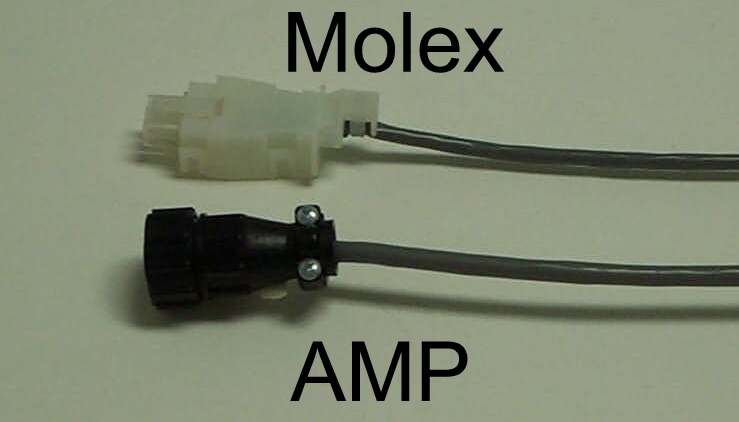

Comparison of Molex (less expensive) Connector to Round AMP(tm) Connector

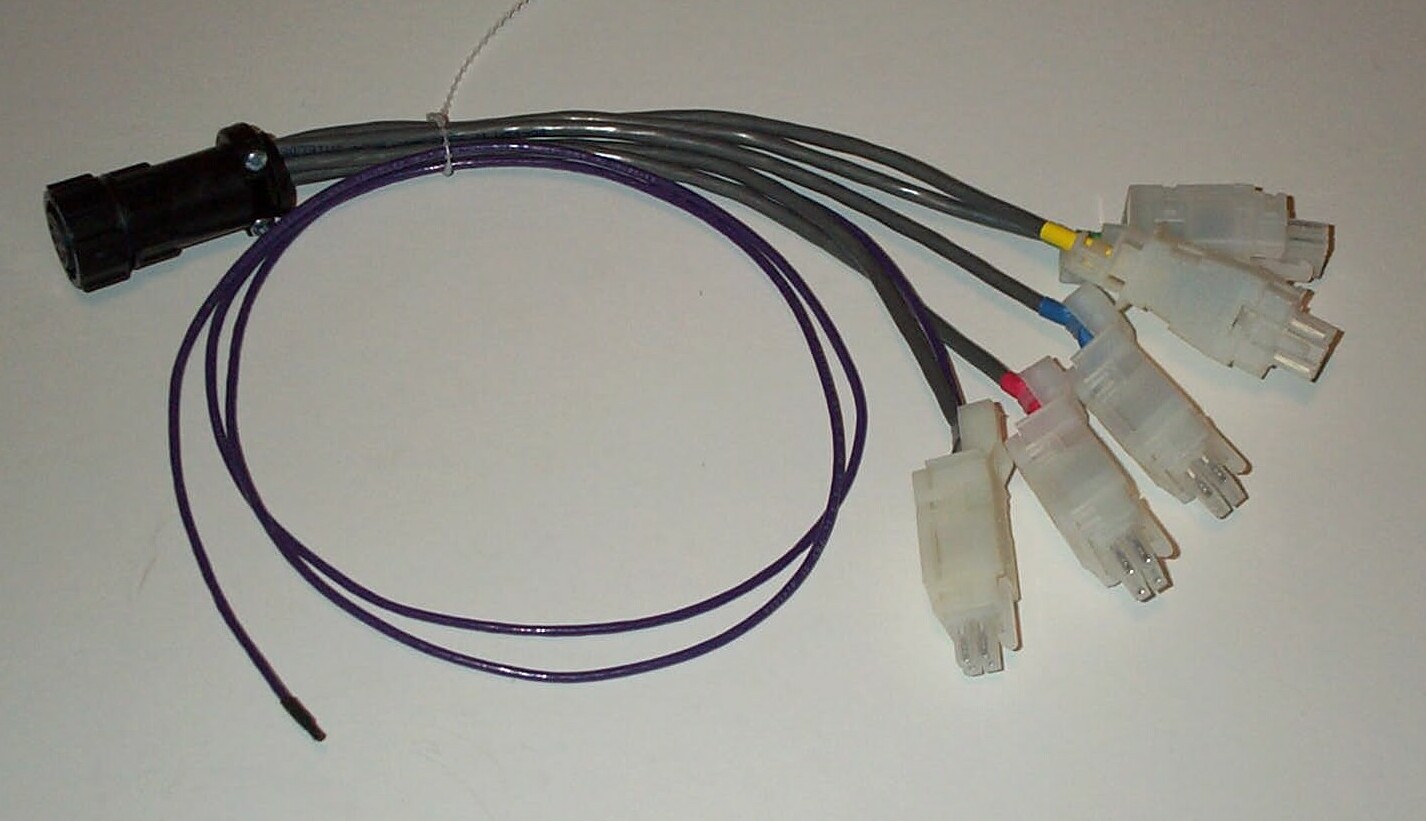

DataMite II RPM Breakout Cable

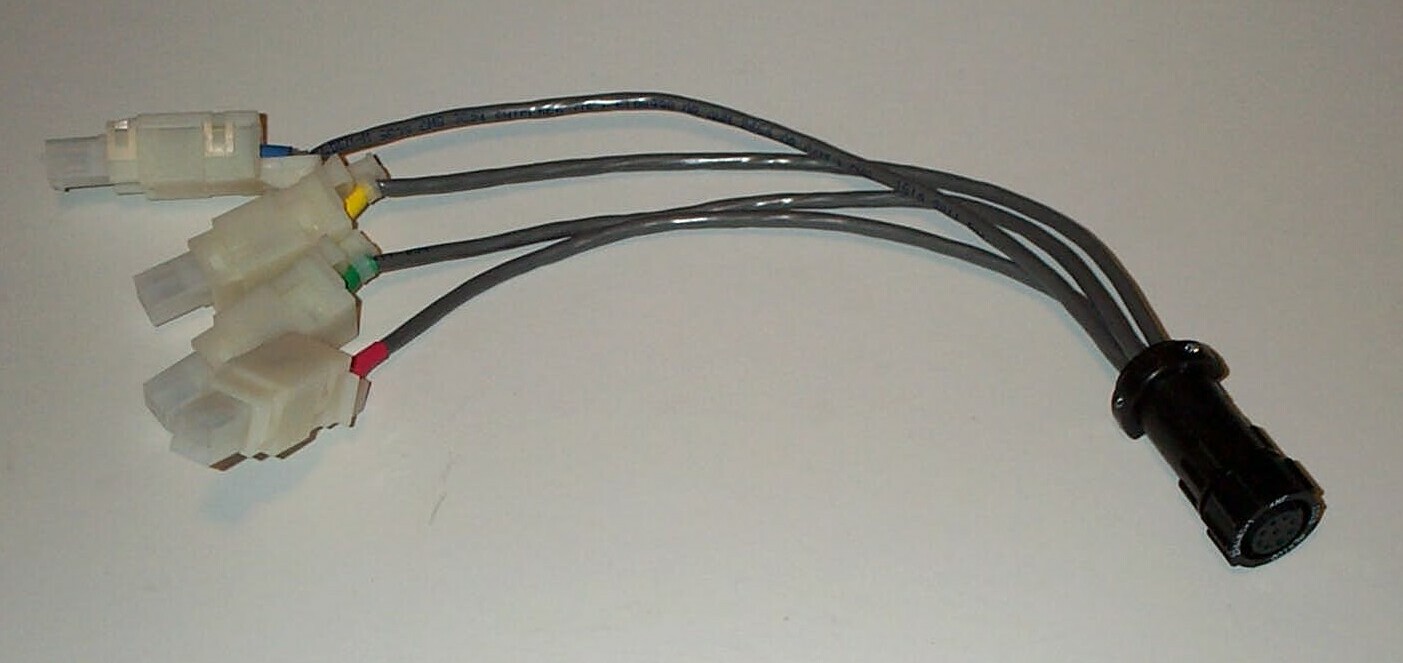

DataMite II Analog Breakout Cable

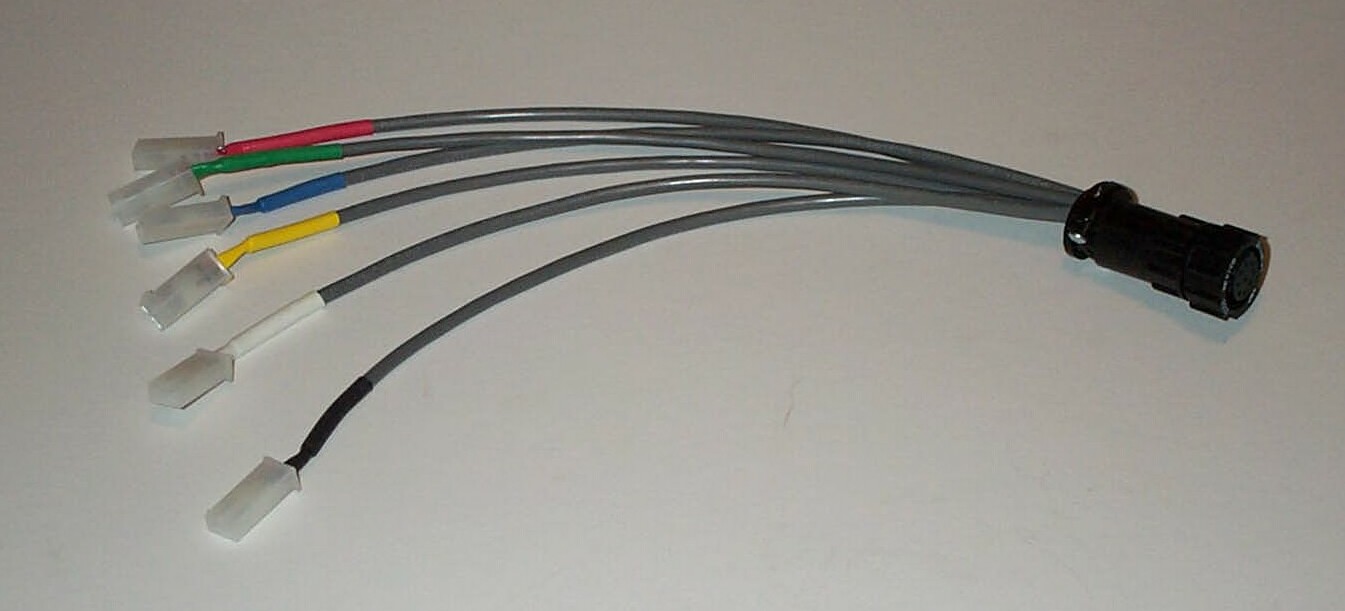

DataMite II Switch Breakout Cable

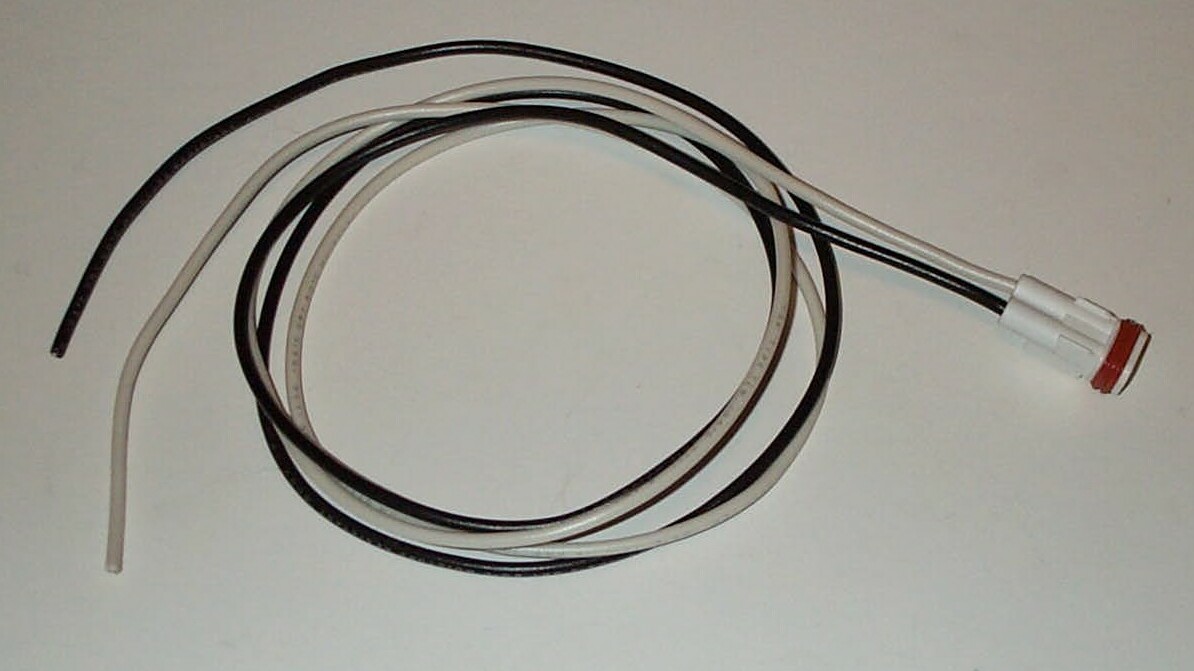

DataMite II Power Connector

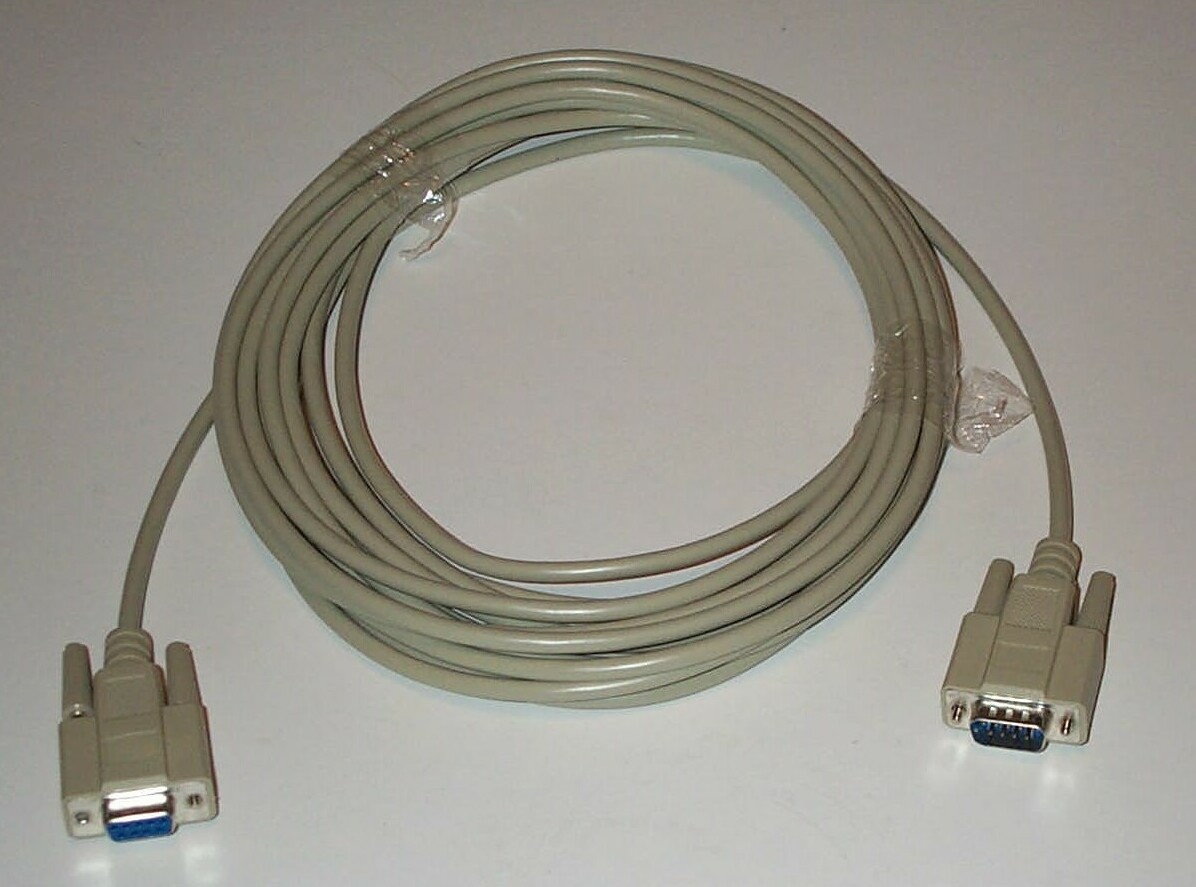

DataMite Serial Extension Cable

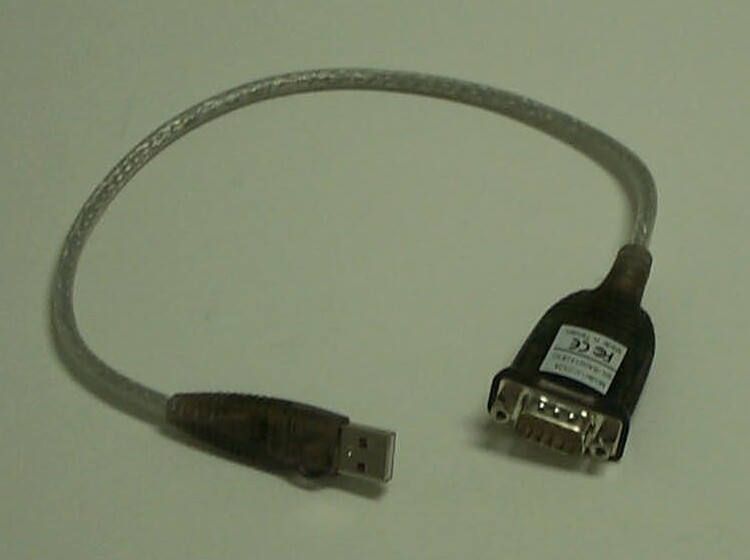

DataMite USB to Serial Adapter

DataMite Unheated Exh Gas Oxygen Sensor

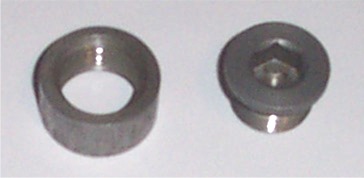

DTM-EBS and DTM-EBSP DataMite Exh Gas Oxygen Sensor Boss and Allen head Plug (less expensive than DT2-AFSB below)

DT2-AFSB and DT2_AFSBC A/F Oxygen Sensor Boss and Cap (exact replacement for A/F system parts)  Also see less expensive parts above.


DT2-EBSE A/F Oxygen Sensor Boss, finned and extended to keep sensor cool and out of exhaust flow to keep exhaust free flowing.

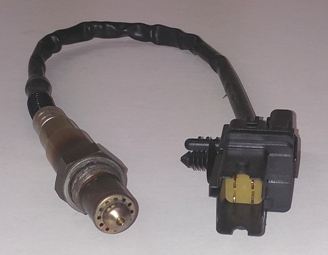

DT2-AFS  DataMite Replacement UEGO 5 Wire Wide Band A/F Sensor, older sensor style with square connector.  See pic below.

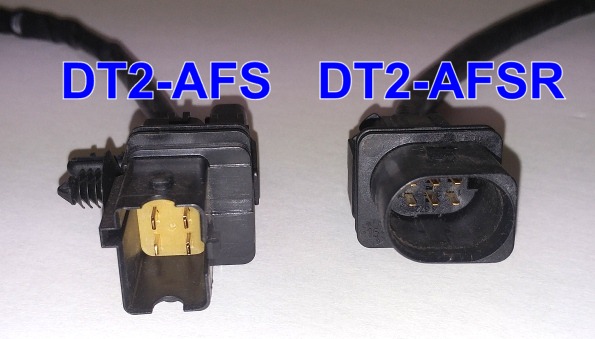

Sensor Connector Comparison

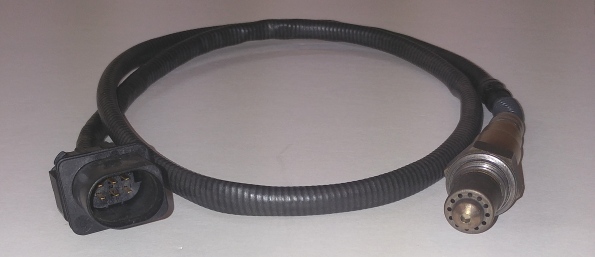

DT2-AFSR  DataMite Replacement UEGO 5 Wire Wide Band A/F Sensor, newer sensor style with rounded connector.  See pic above.





DT2-LB  In car Lap Timer, Beacon and Display (specially modified for DataMite).  Requires DT2-SBC (switch breakout cable) for DataMite II.

DT2-LDC  Load Cell for recording force, typically for a dynamometer.  Threaded holes are for mounting Heim Joints (spherical ball joints) to connect the dynamometer case to the dynamometer frame.

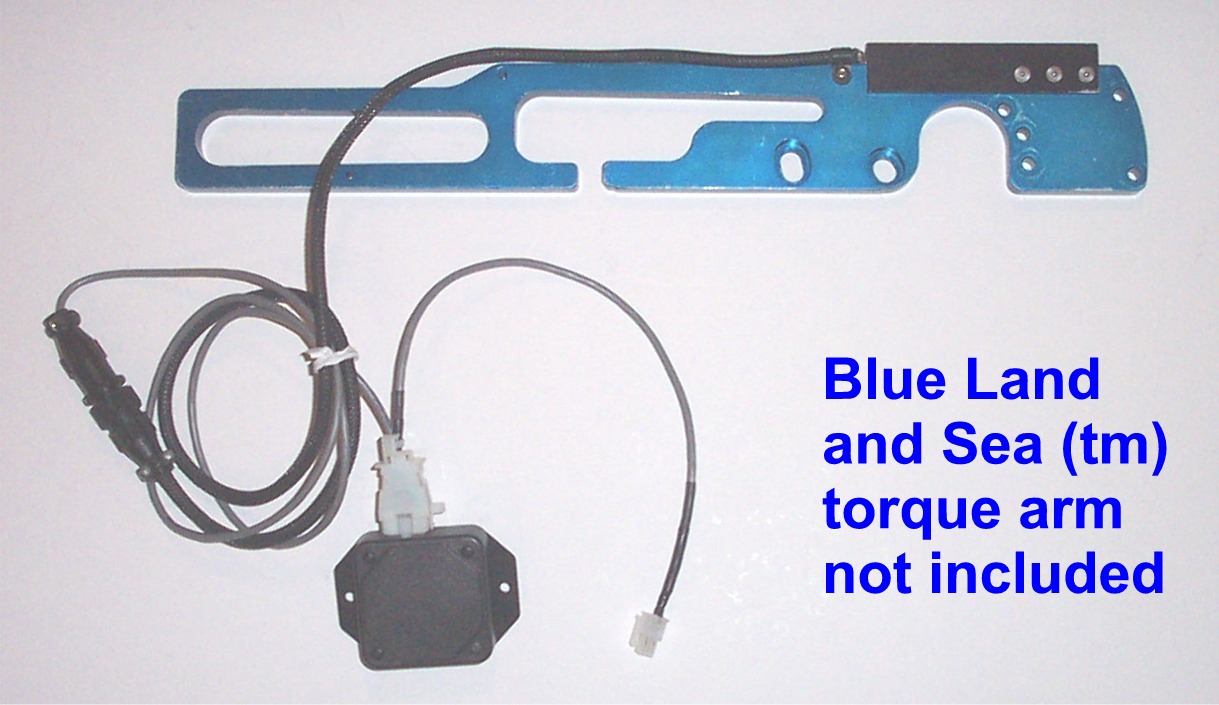

DT3-LSA  Custom connector kit and adjustments for Land and Sea (tm) Torque Arm.  Note:  Blue torque arm is not included, but part of some Land and Sea dynos that a customer wants to switch over to our DataMite package.  This torque arm must sent in by the customer for us to make adjustments and custom connectors to hook up to our DTM-ILCA (external load cell amp).

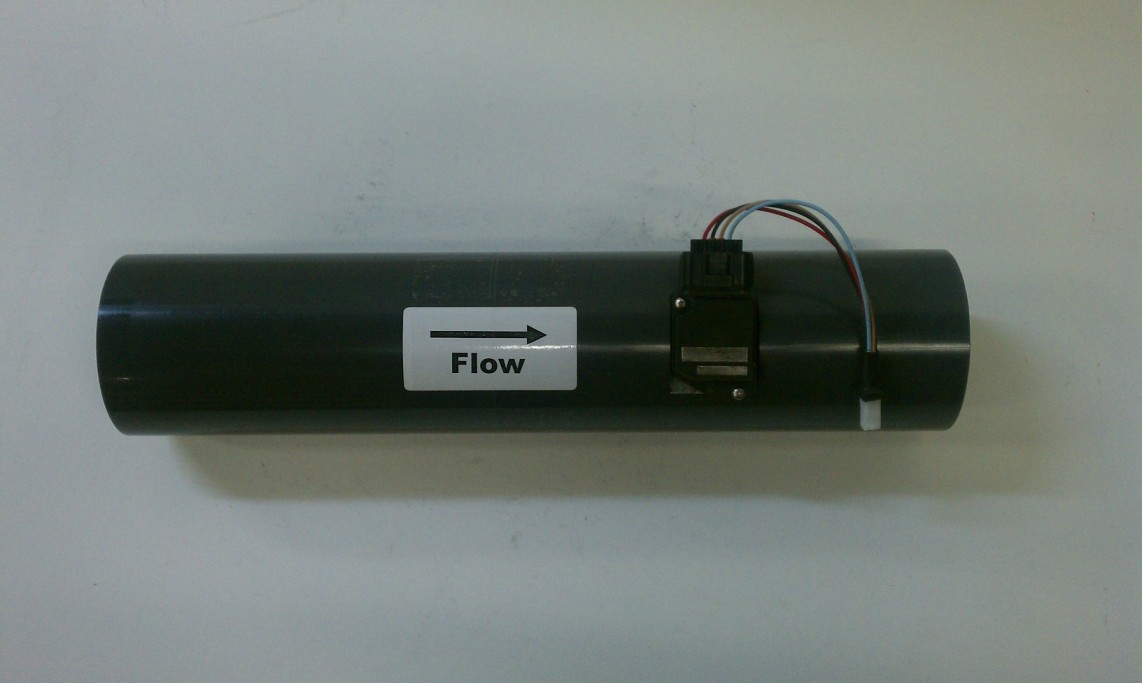

DT4-MAFL Mass Air Flow Sensor, 800 CFM 4" diameter

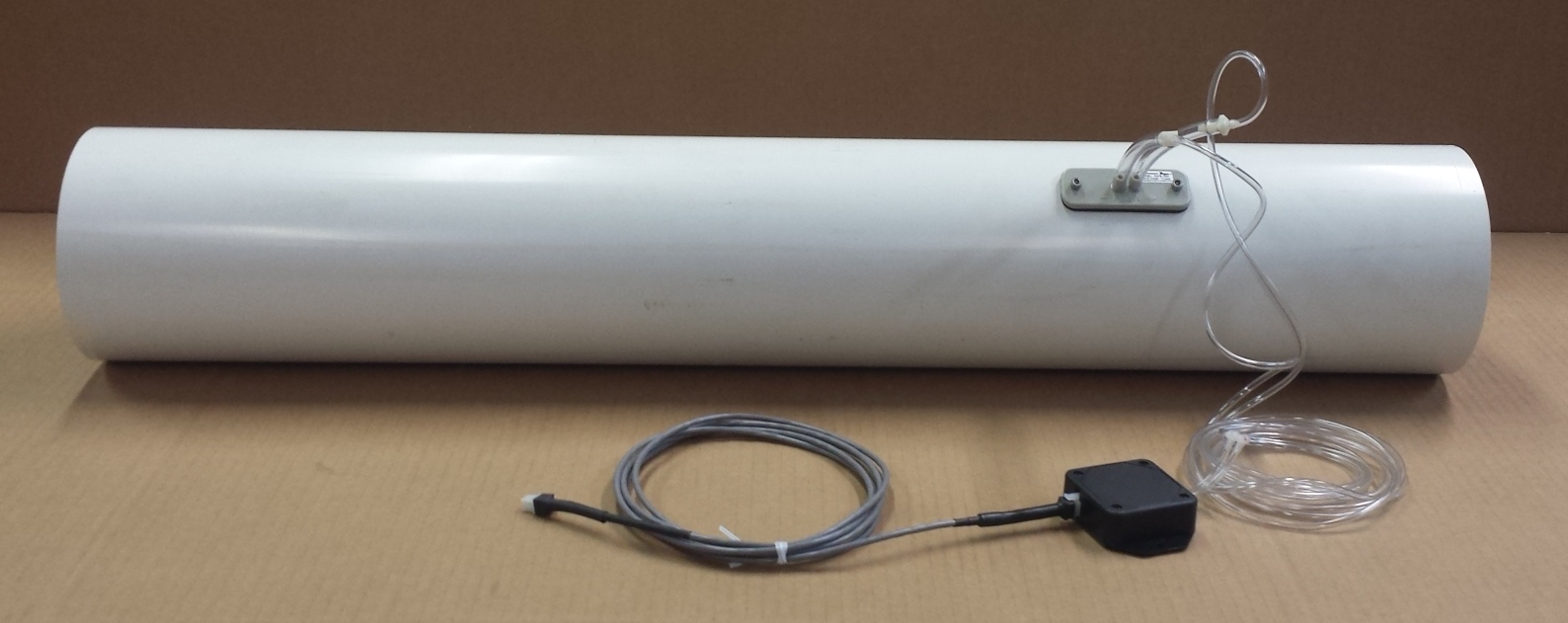

DT4-AFP6 3500 CFM air flow Sensor, 6" diameter



DT3-FFK Karting Fuel Flow Sensor

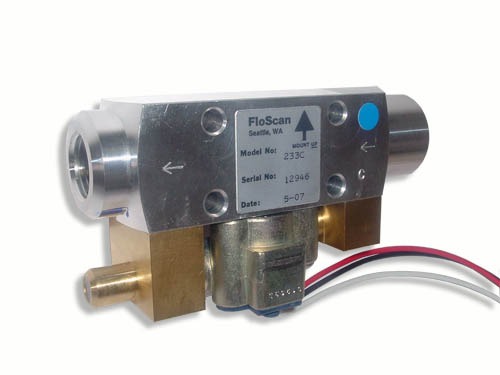

DT3-FSC 1000 HP Fuel Flow Sensor

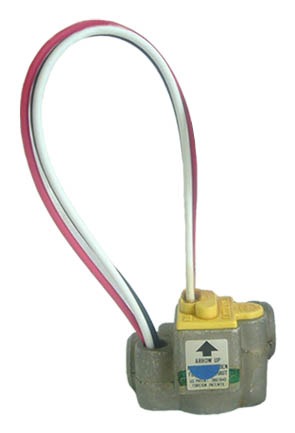

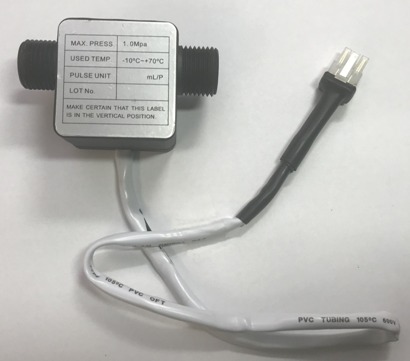

DT3-FS231 500 HP Fuel Flow Sensor

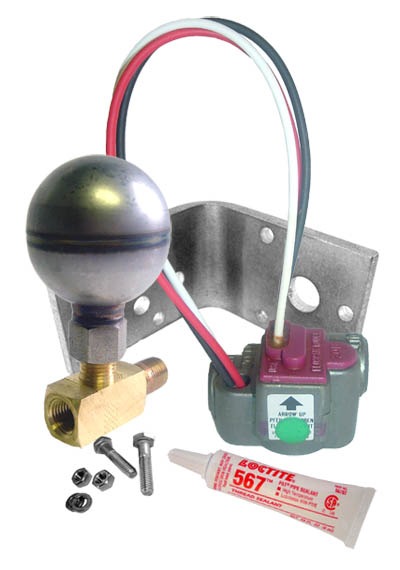

DT3-FS20BA 150 HP Fuel Flow Sensor



Blowby Sensor



DTM-ILCA  External Load Cell Amplifier
