[Company Logo Image]     Performance Trends Inc

    Producing Quality Computer Tools for Racers and Engine Builders since 1986







Practice Tree v2.0 Standard and Plus Versions

Computer Program to Simulate Drag Racing Starting Tree and Analyze/Improve the Driverís Reaction Times and Consistency.

for Windows 98/Me/XP/NT/2000/Vista/Win7/Win8

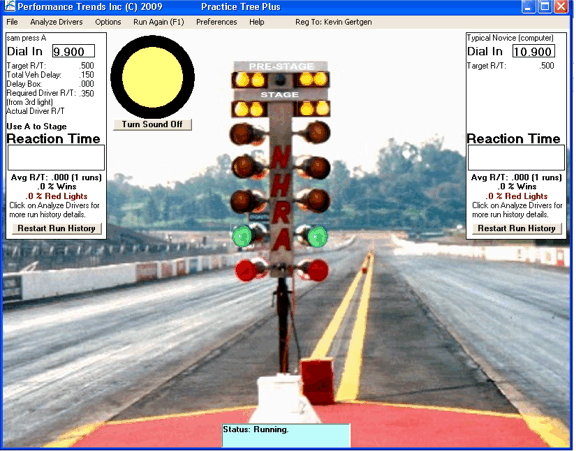

The Practice Tree's screen below shows the lights during a run for handicap racing, where both drivers have different dial-ins.  That's why the right lane's lights are ahead of the left lane.  The program also allows for external switches to be used (using our Com Port connector) to trigger the tree.  for Practice Tree Switches.

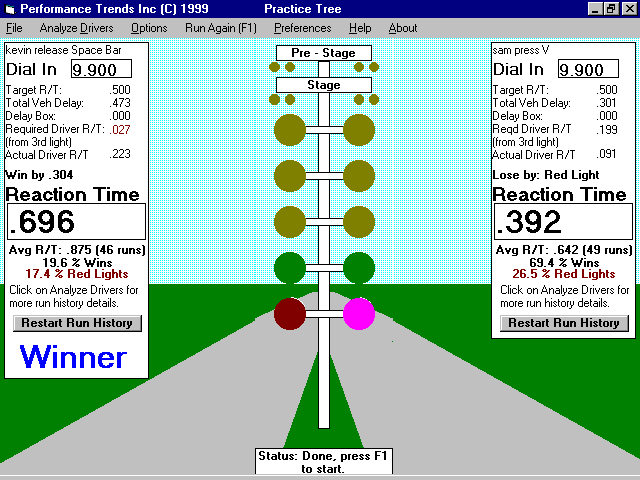

Original screen from Version 1.1 is still available.  Both screens offer the detailed statistics after each run as shown below.





The Practice Tree lets you practice and fine tune your starting line technique for competitive drag racing. Most drag racers know that consistently "cutting" a good light is the most critical aspect to winning. However, how many drag racers know exactly:

The effect staging 1" deeper will have on their carís rollout time, and how their bodyís reaction or delay box must change to compensate for it.

What happens to rollout time if you install larger diameter front tires.

Do you "red light" more often when the other lane leaves first (handicap bracket racing).

What can I do to quicken my reaction time (cut a .510 light) when I current am very consistent at cutting a .580 light.  Or use the new timing numbers of cutting a .010 light instead of a .080 light.

Performance Trendsí Practice Tree is not just a fun game to play against your friends, against yourself, or against a computer driver. It is also the most sophisticated Practice Tree available for analyzing and understanding what happens during staging, how your car rolls through the lights and what causes red lights.

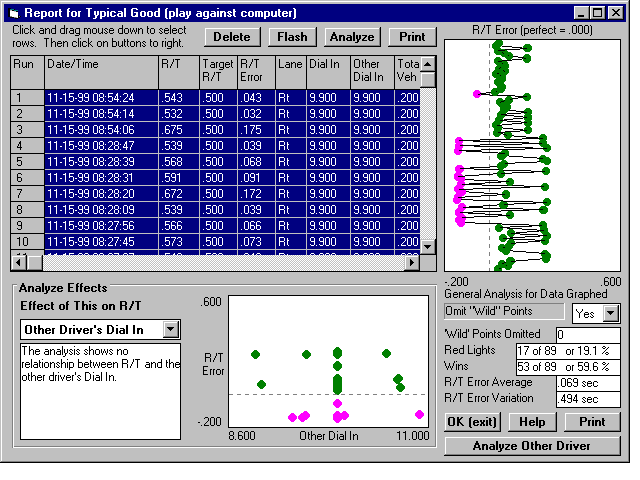

The Practice Tree keeps detailed records of your last 100 passes. These records can be analyzed to help find trends which may affect your performance at the strip. For example, are you quicker at night (dark computer screen colors), do you red light more often if the other car leaves first, are you better or worse after taking a 60 minute break (typical of actual racing). The Analysis Screen has several options for you to analyze your entire 100 run history or just sections, and analyze the history for different trends of how different factors (like screen color) affects your performance.

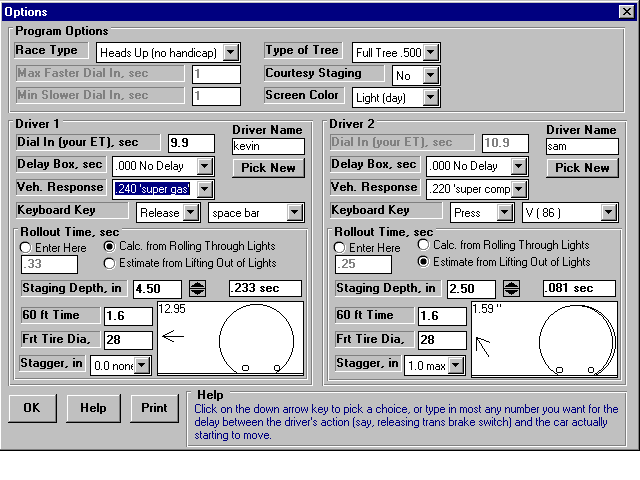

Other Options/Preferences:

.000 or .400/.500 being a 'Perfect Reaction Time'.  Most drag strips are now using .000.
Pressing or releasing a keyboard key or switch can trigger the program.
You can select .400 or .500 second intervals for either a Full Tree or Pro Tree sequences.
You can pick most any key on the keyboard for either driver.
Picking to use an external switch for the left and/or right driver.  Connectors and cables are available for you to use either hand or foot switches from Performance Trends, or letting you wire into your own switches.
You can choose to have pressing or releasing the external switches to trigger the program.
Simple 'one entry' delay time to account for total vehicle delay (like other practice tree programs) or more detailed roll out + vehicle response time + electronic delay box which provides much more insight on how total Reaction Time adds up and includes your human reaction time.
Use standard NHRA staging lights, spacing and heights or customize for your needs.
Allowing for "Crossover" lights, where both top amber lights light at the same time, then the 2nd amber lights come on with the dialin difference.
Allowing for a random Starter Delay Time (time from staging to starting the tree), or specifying various levels of quick vs slow Starter Delay Times.
Allowing for a perfect tree to be the older .500 second time, or the newer .000 second time.



Plus Version Features:

The Plus version of the Practice Tree includes a shift light, and will measure how accurately you can shift following the shift light.  This feature can be added to your standard Practice Tree program.

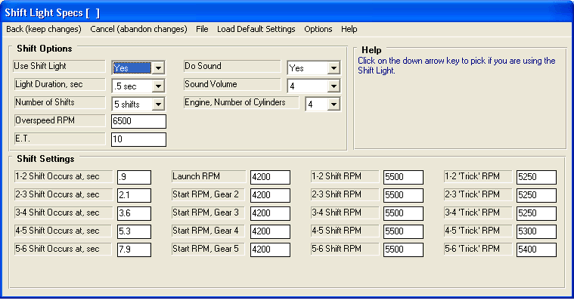

You have several inputs to fine tune how you want this feature to work as shown in the screen below.  These include sound through most any sound card, and the ability to specify a "trick" RPM, an RPM which occurs before your desired RPM to help you more perfectly shift at your desired Shift RPM.  The "Load Default Settings" is a feature to load in most of the settings in this screen from as few as 5 easy inputs.

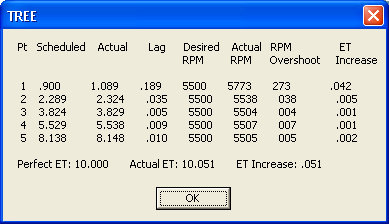

When you finish your run, you will get results as shown below, including an estimate of how much your ET suffers because you did not shift perfectly at the RPM you specified.





What You Need:

Computer with Windows 98, Me, XP, 2000 or NT, Vista, Windows 7, Windows 8.



More Information, Download Demo:

to go to our Demo Downloading page to download a FREE Drag Race Practice Tree Demo.



_______________________________________________________________________________________________________________

To Order:

Drag Race Practice Tree Standard - Our DOWNLOAD ONLY option. If you only want the unlocking code and DO NOT want a CD shipped, click on Add to Cart below. You will not be charged shipping.

$39.95

____________________________________________________________________________________________________________________________

Drag Race Practice Tree Standard - If you want a CD shipped to you, click on Add to Cart below. There will be shipping charges added to your order. You can still download the demo and get your unlock code sooner with this option.

$39.95 plus shipping



____________________________________________________________________________________________________________________________

Drag Race Practice Tree Plus - Our DOWNLOAD ONLY option. If you only want the unlocking code and DO NOT want a CD shipped, click on Add to Cart below. You will not be charged shipping.

$79.95

____________________________________________________________________________________________________________________________

Drag Race Practice Tree Plus - If you want a CD shipped to you, click on Add to Cart below. There will be shipping charges added to your order. You can still download the demo and get your unlock code sooner with this option.

$79.95 plus shipping



____________________________________________________________________________________________________________________________

You can download this program as a demo Free to try it. If you want to order it, call 248-473-9230 with your Visa, MC, AmExp or Discover card. Performance Trends can provide you an "unlocking code" number to activate all features (bring it out of demo mode). When newer versions are released, you can download the latest demo and activate all features with this same "unlocking code".

The "on screen" help explains all features, inputs and outputs. This program does not come with a userís manual.

for more price and ordering info.



Accessories:

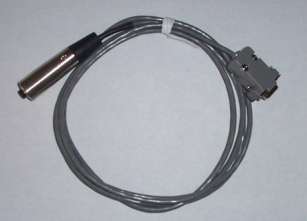

You can also order the Com Port connector (special wiring and components to safely work with the Practice Tree program).  This lets you wire in 1 or 2 of your own switches.  You can also order our hand switch or foot switch with the proper connectors so you can simply plug in and go.  USB to Com Port converters available for computers without DB9 (9 pin) Com Port and only USB ports.



for prices of these Practice Tree Accessories.







<
