Automatic Valve Opener (actuator) to Automate your Flow Bench Testing



Components for the Automatic Valve Opener have been discontinued, so we have had to discontinue this product.



Performance Trends' valve opener (part number PFA-VO) will automatically set the valve lift and record data during your flow bench testing. It automatically finds the tip of the valve and zero's itself out. It then steps through all valve lifts listed in your test in Performance Trends' Port Flow Analyzer software. At each lift it waits a user specified stabilization time, then records the data and advances to the next lift point.


When the test is complete, the opener closes the valve, and checks to see that no slippage has occurred, and turns off the bench if you have a SuperFlow tm motor controller. Also if you have motor controller, like a SuperFlow tm SF1020 bench, you can start the test and the Port Flow Analyzer software and valve controller can run the entire test. When done, the valve will be closed and the bench turned off. This is one tool that really will save you time and produce more consistent flow test results.


Main features include:

  • Compact, rugged design: All aluminum main body is 3.50 x 2.00 x 2.00 inches (90 x 51 x 51 mm)
  • Optional mounting bracket (shown above) adjusts to most any valve angle
  • Optional adapters for Brzezinski slider system available
  • 2 inches (51 mm) of stroke provides for easy setup. See back page for Installation Tips.
  • The software lets you make over 50 different lifts in most any order of opening or closing the valve, in increments as small a .010 inch (.25 mm).
  • USB connection for most any computer (hookup requires 110 or 220 VAC power and USB connector)
  • Precision stepper motor has resolution of .0001 (a tenth of a thousandth inch) or .0025 mm.
  • Force from 10 to 15 lbs or more depending on mAmp current setting you make in software.
  • Over temperature checking and warning in Port Flow software.
  • This product requires the Port Flow Analyzer software, Pro or Head Porter versions.

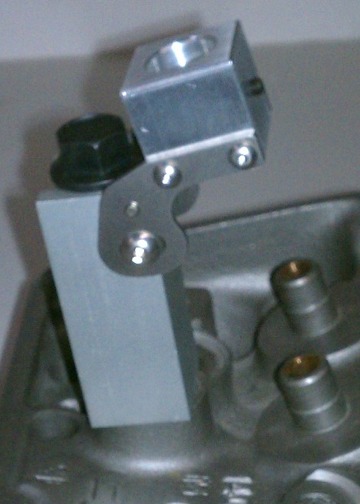

Valve-Opener-Bracket.jpg (40076 bytes) Recommended accessory, valve opener adapter, Part # PFA-VOS (click image to enlarge)

 Valve-Opener-Adapter-Adjustment.jpg (269316 bytes) Valve opener adapter, Part # PFA-VOS is "4 way" adjustable (click images to enlarge)



Custom Applications:

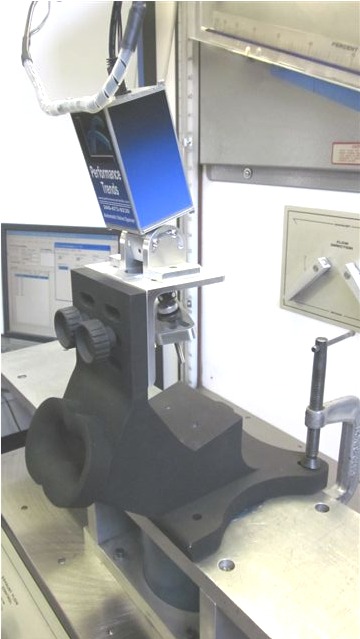

Our machine shop can do custom machining for brackets or adapters, or complete modifications for most all our mechanical components.  Here's some pic of how we adapted the Auto Valve Opener to a 4 Valve "flow block" (machined block with a prototype port).  Ask us for a quote for custom machining or adapters to most any of our products.

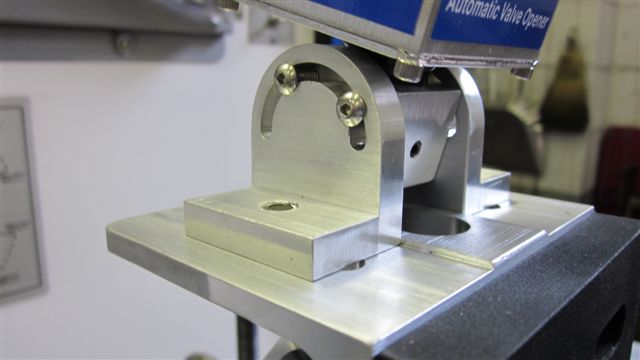

 Auto-Valve-Opener-Custom-Angle-Adjustment.jpg (39746 bytes)  Detail of valve angle adjustment (click image to enlarge)

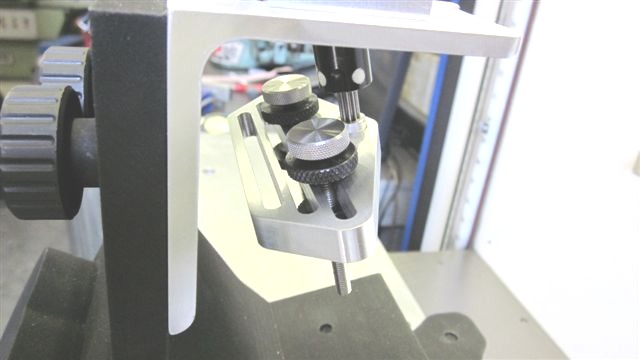

 Auto-Valve-Opener-Custom-4-Valve-Detail.jpg (37011 bytes) Detail of 4 valve feature, very similar to Part # PFA-VO4V  (click image to enlarge)

  Mopar Adapter for BB and SB Mopar Wedge heads (and other heads with shaft mounted rocker arms) PFA-VMA

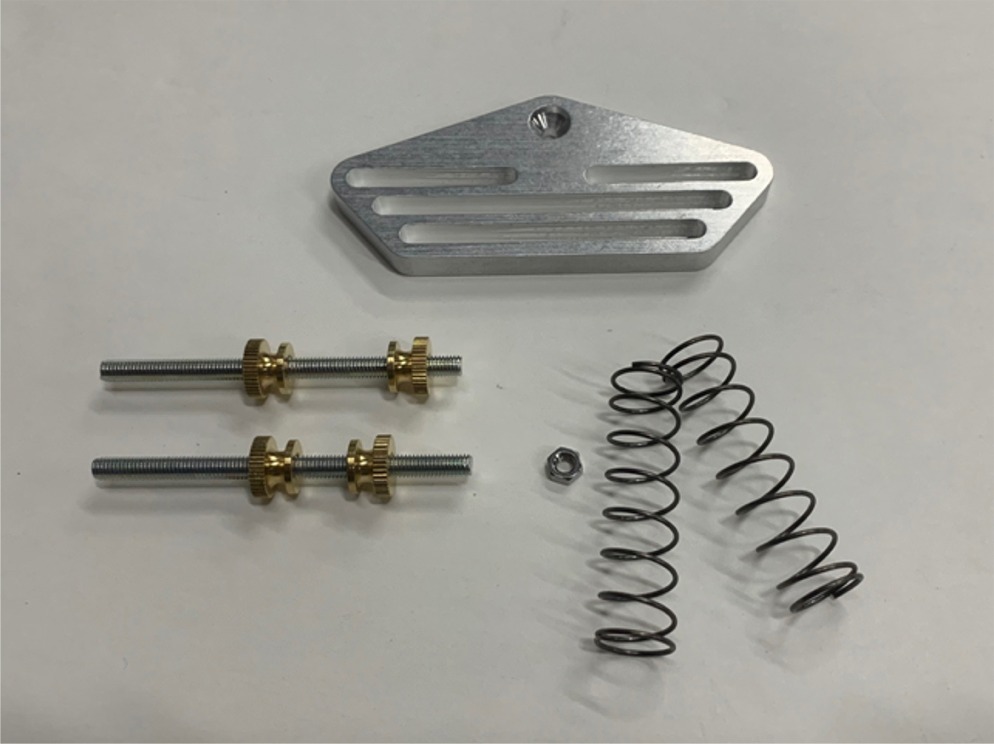

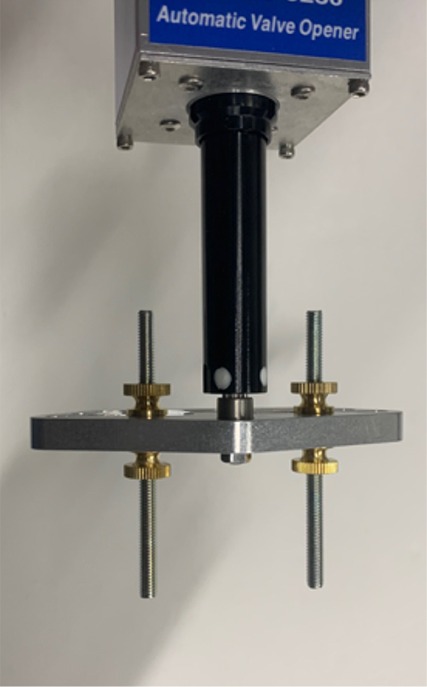

Auto-Valve-Opener-4-Valve-Adapter.jpg (36768 bytes) Auto-Valve-Opener-4-Valve-Adapter-Kit.jpg (92641 bytes)  PN:  PFA-VO4V  Auto Valve Opener - 4 Valve Adapter



More Info:

for installation tips.  IMPORTANT:  This product requires the Port Flow Analyzer software, Pro or Head Porter versions.



for information on our Manual valve opener.





To Order:

for prices.

Call 248-473-9230. Visa or Mastercard accepted.

Electronics like Valve Opener have a limited 1 year warranty.
