Manual Valve Opener for Flow Bench Testing

Mechanical Dial PFA-VAU                   Digital Readout (inches and mm)  PFA-VAUD

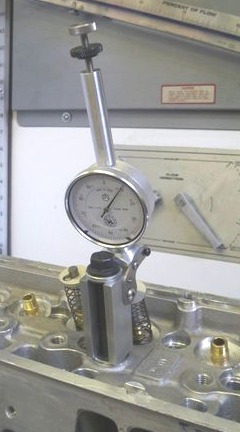

Performance Trends' manual valve opener (part # PFA-VAU) with mechanical dial lets you set the valve lift for your flow bench testing.  The Digital Dial part number is PFA-VAUD.  Features include:

• Mechanical Dial Opener is of rugged, clear anodized, billet aluminum construction.
• Digital Dial Opener is of stainless steel construction.  The Digital opener has a button to switch between inches and mm.  Readings are to the nearest .0005 inch or .01 mm.
• Universal mount included, allows for valve angle adjustment from approximately -10 to + 20 degrees (plenty for most any Head you will encounter) and up to 1" travel.
• "Self Retracting" design.  The dial indicator retracts when you move it from one valve to another.  Very convenient.
• Quik Retainer kit available (part # PFA-QR).  Kit includes 4 Quik Retainers (2 each of 2 different sizes) and 2 flow testing springs.  Std kit includes two 5/16" and two 11/32" Quik Retainers (8 mm and 3/8 also available).  These retainers they also fit the radius groove stems like GM LS valve).  See below.
• 4 Valve option available.  See below.
• Metric mm option available for Mechanical Dial Opener.

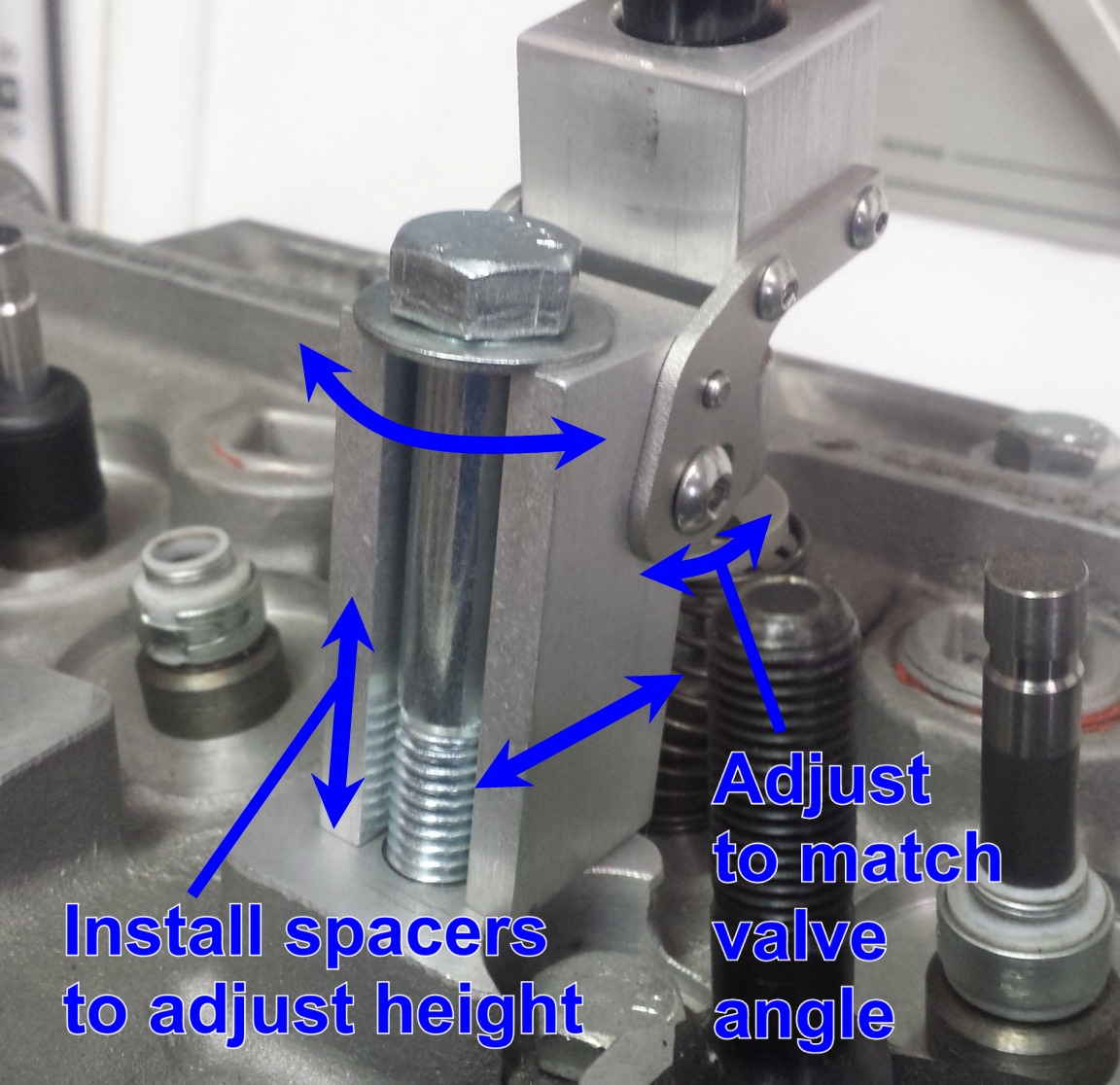

Universal mounting bracket is "4 way" adjustable.  (Click image to enlarge it.)

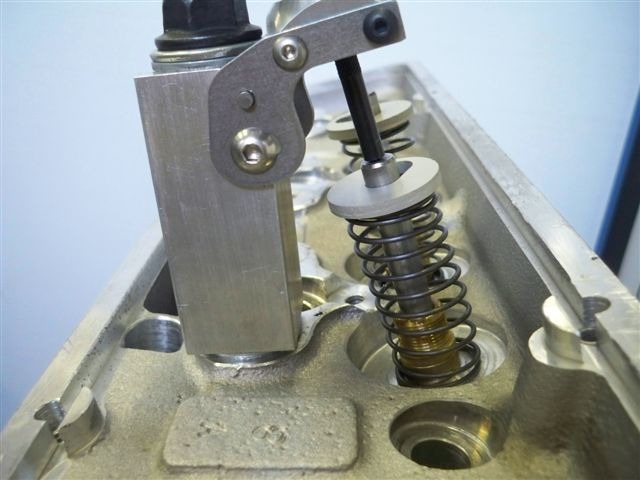

Quik Retainer Kit shown part number PFA-QR.  (Click image to enlarge it.)    Standard kit includes 2 light testing springs, and 4 Quik Retainers, 2 at 5/16 (which also work on 8 mm LS valves) and 2 at 11/32. 3/8" retainer kit also available.

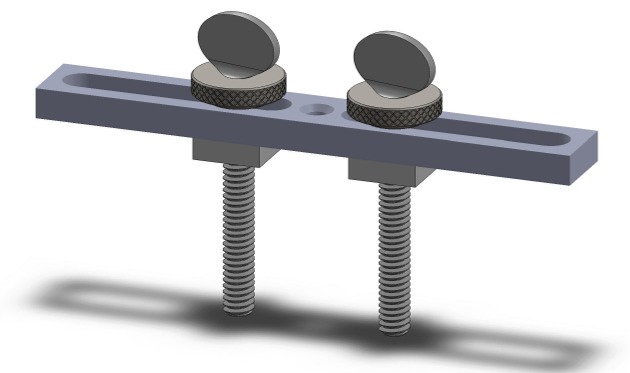

  4 Valve Adapter part number PFA-VAU4 (Click image to enlarge it.)

  Mopar Adapter for BB and SB Mopar Wedge heads (and other heads with shaft mounted rocker arms) PFA-VMA



for information on our Automatic valve opener.



To Order:

for prices.

Call 248-473-9230. Visa and Mastercard accepted.

Valve Opener has a limited 1 year warranty.
