  1. Troubleshooting and Tuning w Drag Race DataMite
  2. Improved 4 Link Plus Animation
  3. Facebook Followers Get Discounts
  4. Last June's Newsletter


1)  Troubleshooting and Tuning w Drag Race DataMite  Cobra Jet racer Blaine Ramey (Ramey Motorsports) is also a Ford Engineer.  Being an engineer, he probably thinks more about using technology to optimize his car than the average racer.  Blaine went out and did a quick "test and tune" at an 1/8 mile track to check a few things:

Was A/F tracking at 12.5 through the entire run?
Was the transmission pressure holding about 220 psi through the entire run?
Was the supercharger pulley slipping?
Was the 4 link working as it should?

Since he's been using a Drag Race DataMite III USB, this was as easy as installing the proper sensors and playing back the results.  Here's some pics of how some sensors were installed:

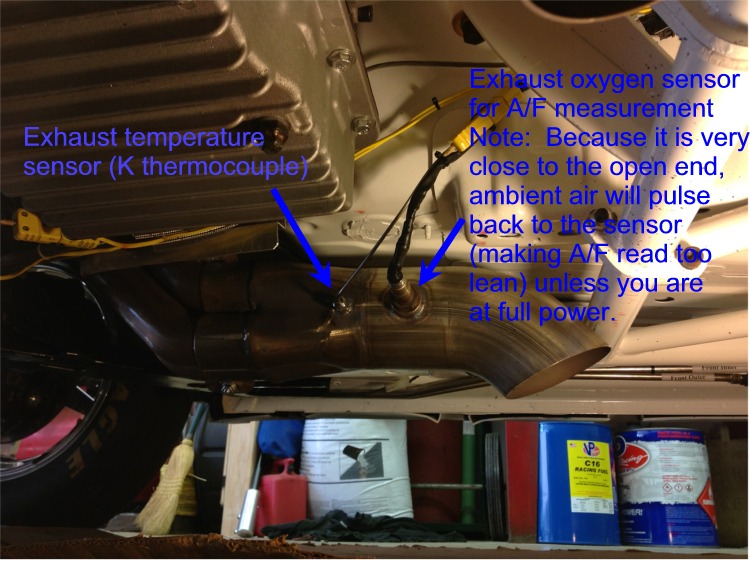

Blaines-Oxygen-A-F-Sensor-In-Collector.jpg (133478 bytes) (click on image to show A/F sensor in collector)

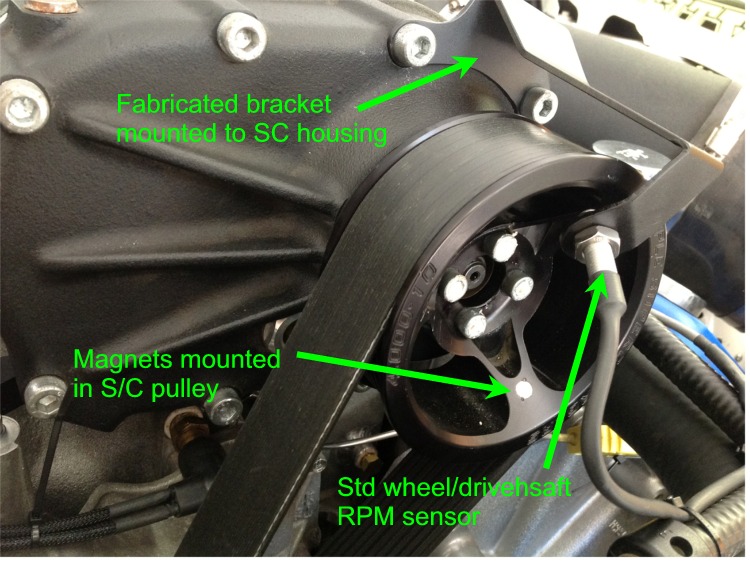

Blaines-Supercharger-Pully-Sensor-for-Slip.jpg (133785 bytes) (click on image to show supercharger pulley RPM sensor)


Here's some graphs of how the results looked:

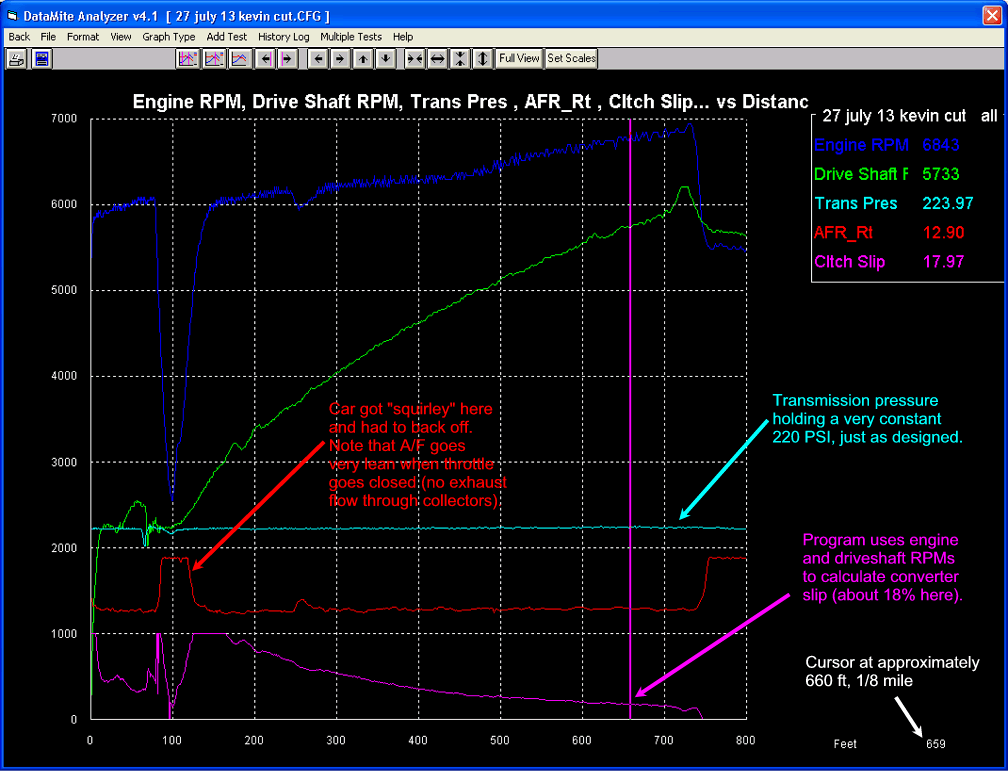

Blaines-Graph-A-F-and-Converter-Slip.gif (76631 bytes)  (click on image for graph of converter slip, transmission line pressure, and A/F readings)

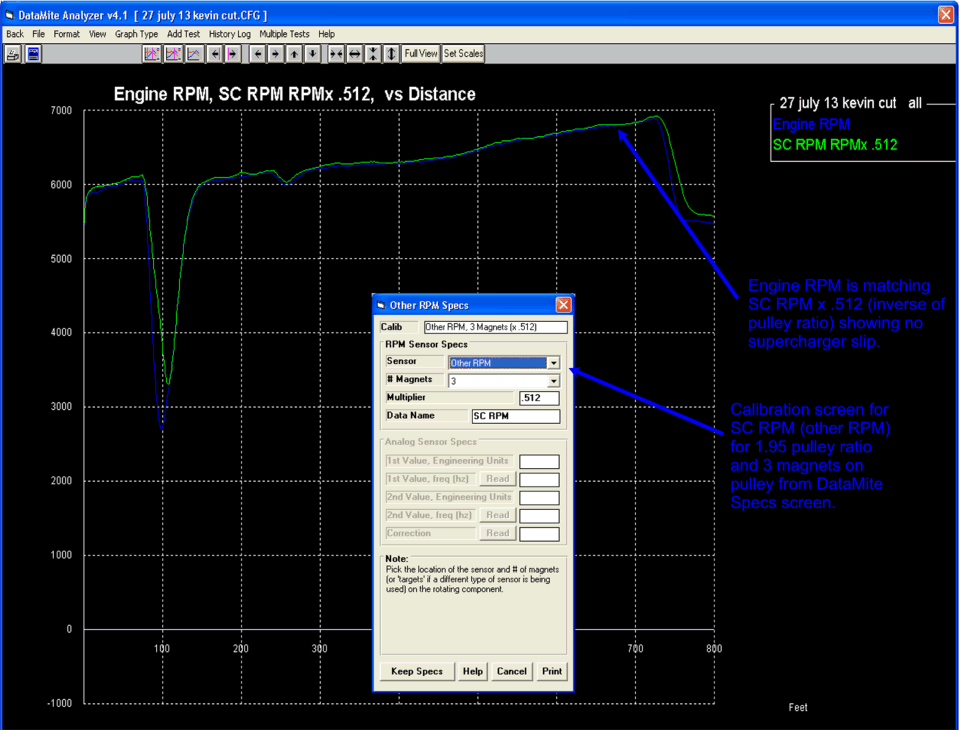

Blaines-Graph-Supercharger-Slip.gif (94363 bytes) (click on image for graph of supercharger RPM vs Engine RPM)

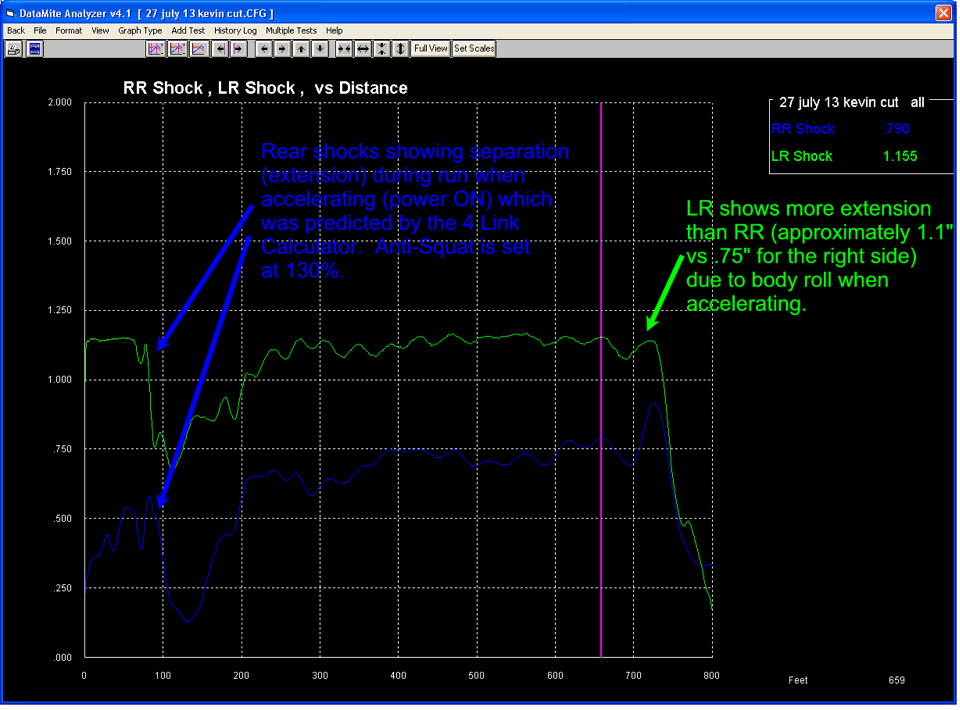

Blaines-Graph-4-Link-Shock-Travel.gif (51429 bytes) (click on image for graph of shock travel vs 4 Link Calculator setting)


Results showed the following:

A/F is suppose to be 12.5 from engine controller.  However, graphs show it starting at 12.5:1, but may be leaning out to almost 13:1 at higher RPM.  Blaine will richen up the A/F some to be safe using the engine controller.
Transmission Line pressure was 220, exactly as it should be.
No supercharger slippage was seen.
Shock travel confirms that at 130% anti-squat, the rear shocks were extending under acceleration.

This shows just some of the uses of a data logger like the Drag Race DataMite for tuning and diagnosing problems.

to visit the Drag Race DataMite's main page.

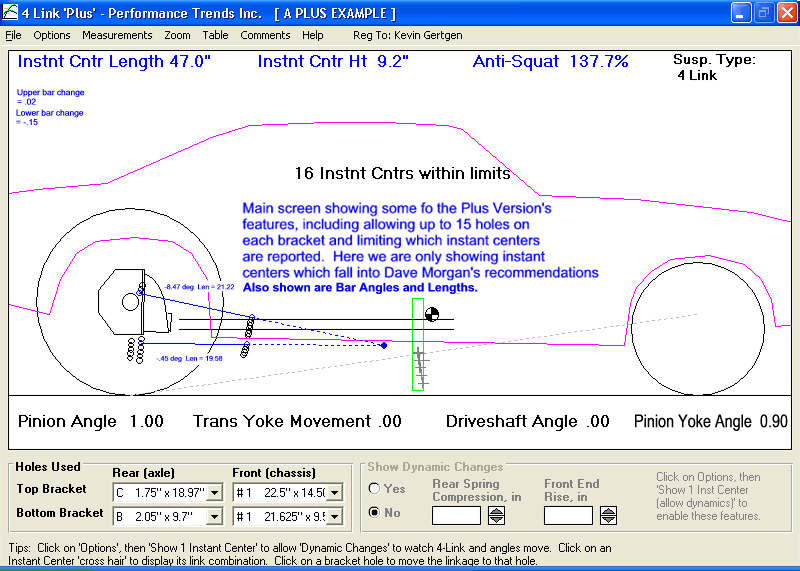

2)  Improved 4 Link Plus Animation  We've added another feature to the 4 Link Calculator Plus for doing better animation of shock travel.  If you click on Options, then Animation, and now you have a choice between Standard Animation (which we've always done) and Animation More Realistic (changes with Anti-Squat).  This is a free update to owners of the 4 Link Calculator Plus.  If you own the standard 4 Link program, it is a $60 upgrade charge (part number 4L20+CU).
