More Pics...................

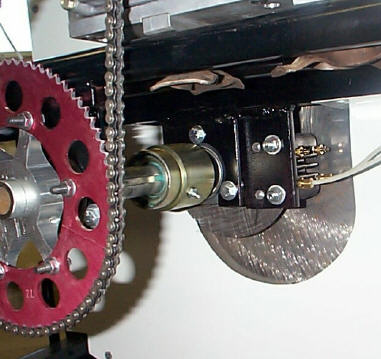

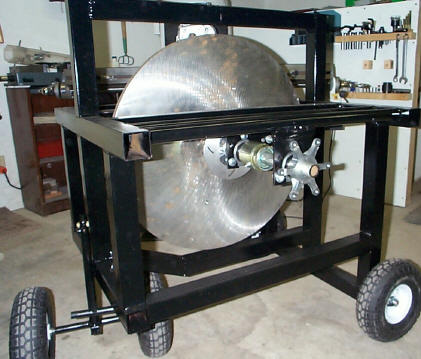

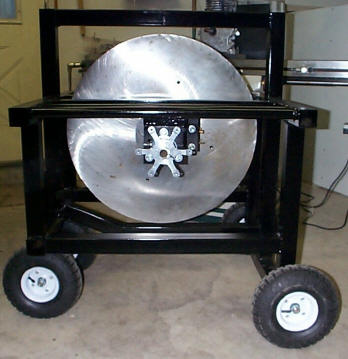

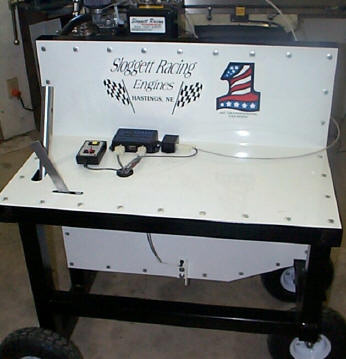

Chuck Sloggett's Dyno

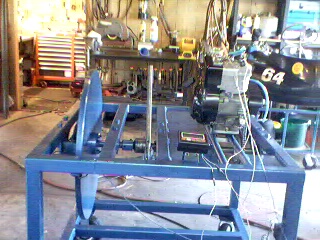

Dyno by John Hensley of Terre Haute Indiana

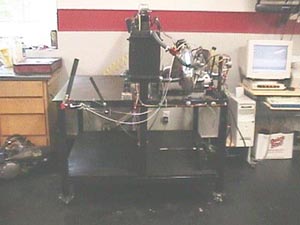

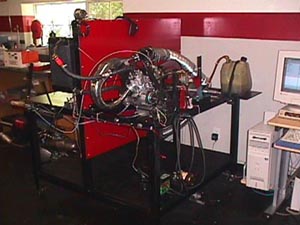

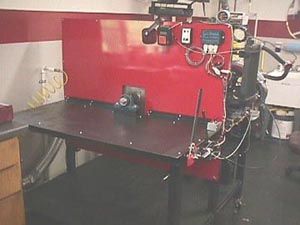

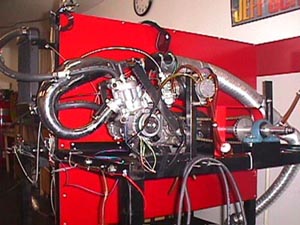

 As far as I know, this is the first dyno built for 125cc shifter motors.........
 Built by Bill Givens, it has a 30" x 1" flywheel geared to turn approx. 2600rpm.
 Bill reports that it works very well.



If you have used our site to construct an inertia dyno, please send us some pictures to share.
