Here are some pictures sent to us by people who have successfully built a dyno following the information given on our site. These are all great looking examples of what can be done. We wish we had time to get ours looking this good, but we keep it so busy we just don't have time to shut it down for a facelift. Maybe you can use some of these pictures to help you design your inertia dyno.

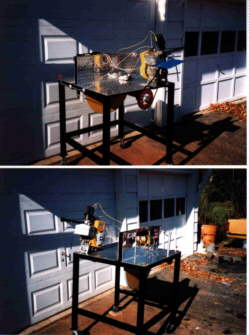

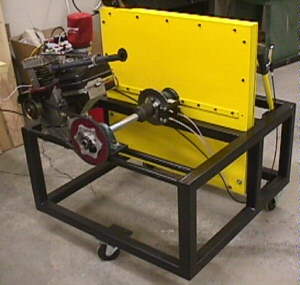

Here are 2 pictures supplied by Jim E. in Texas who built his dyno after seeing the TDKMotorsports site.

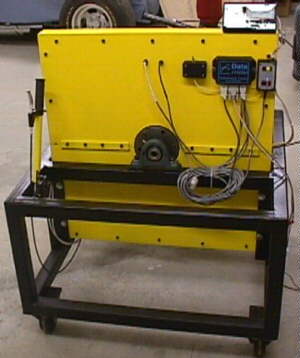

And how about this one from Scott Doutrich of York Pennsylvania.

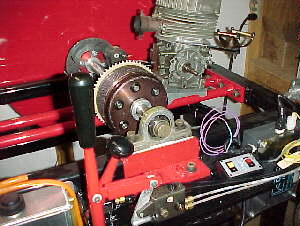

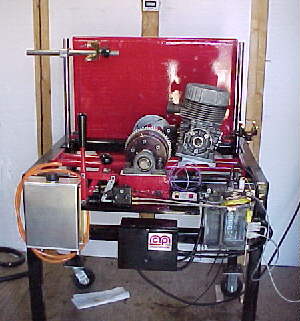

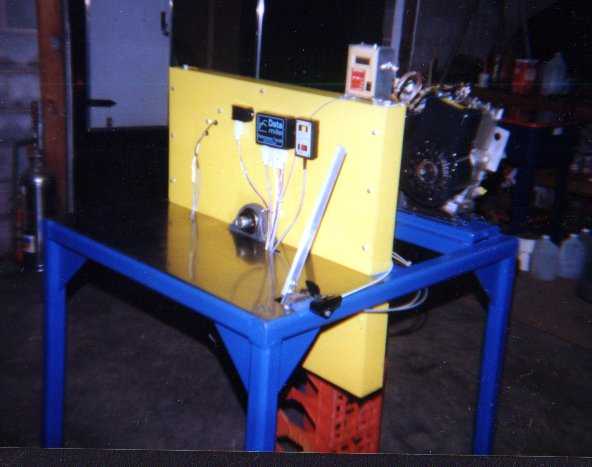

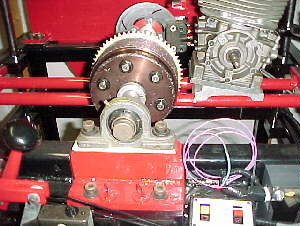

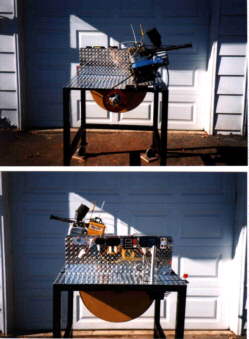

And here is a nice looking dyno built by James Fuch of Fuch Built Motors

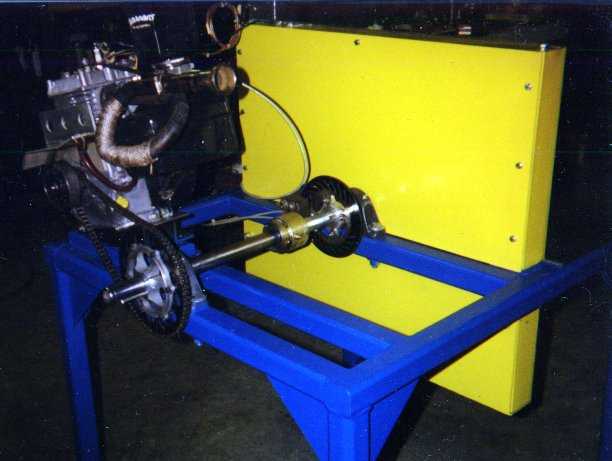

This dyno was built by Gerald Bailey from South Carolina.

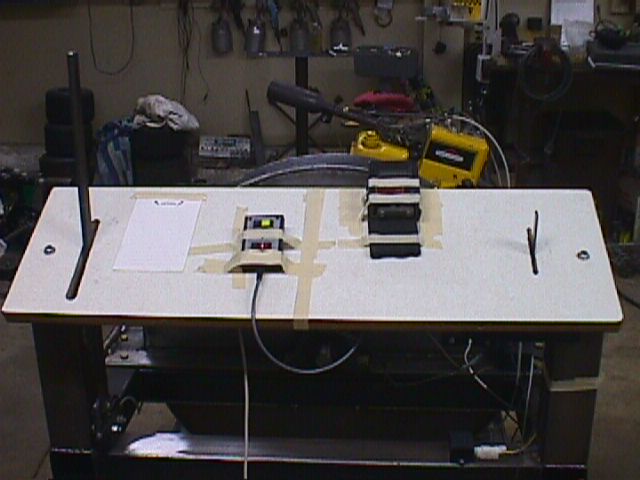

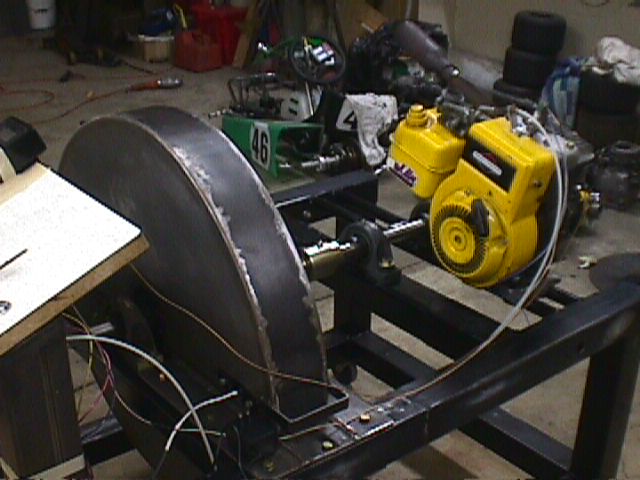

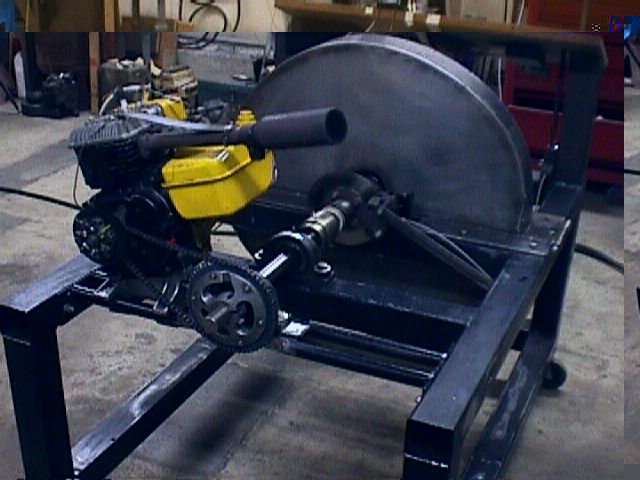

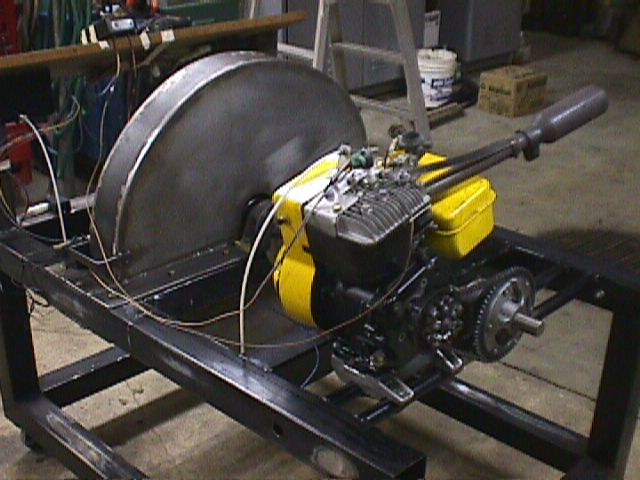

These 4 pictures are from Jim Franz (Jimbo) in Wisconsin. The flywheel cover must have taken some time to fabricate.

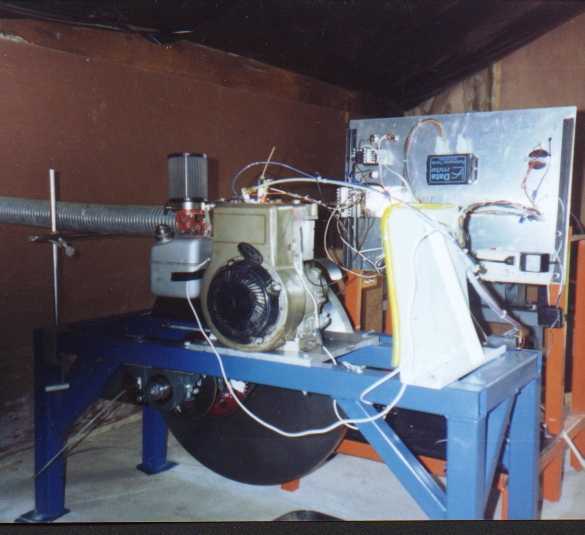

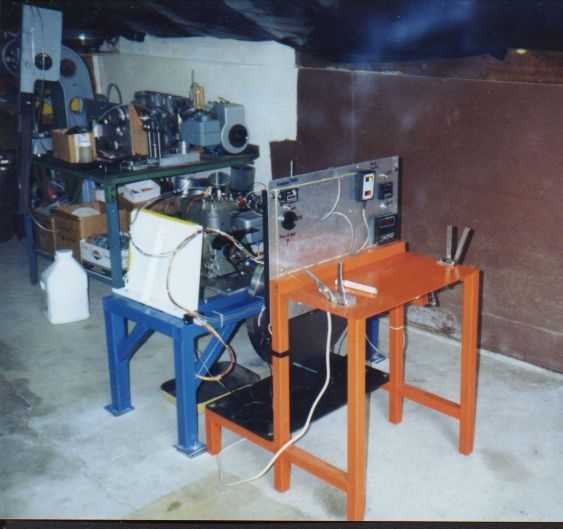

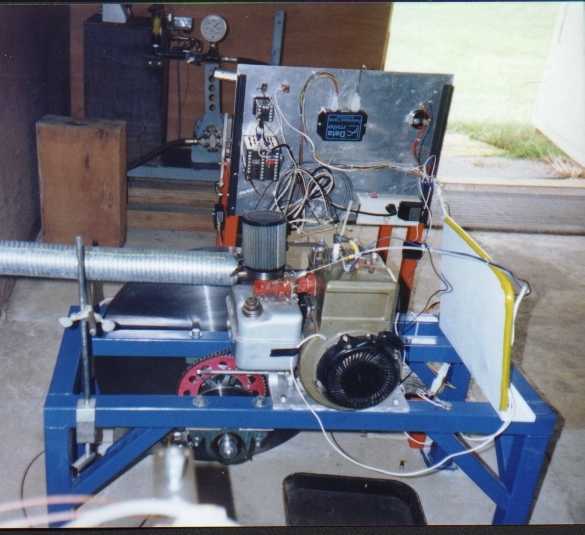

These 3 pictures are from Bud Haney in Illinois. A very nice looking control panel

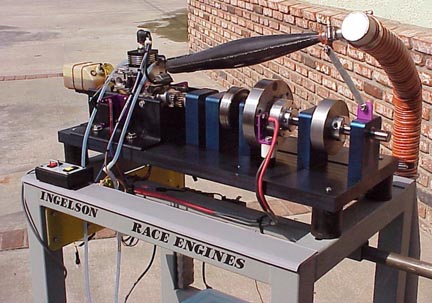

Here is a dyno built by Larry Ingelson in California for use on what was a weedeater motor at one time but now powers a very serious RC racing boat.

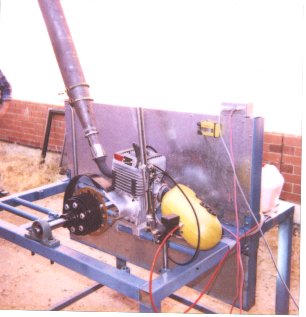

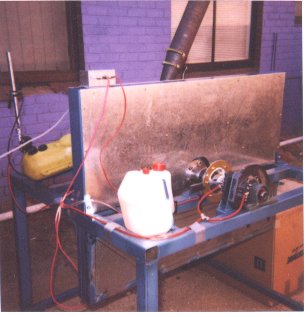

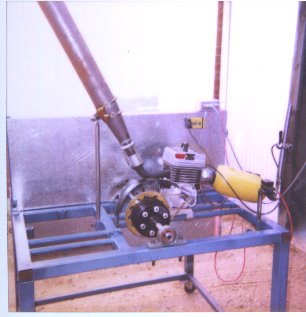

And here is another example built by Ian Williams in Australia.



From Buddy of N.C.




More Pictures


If you have used our site to construct an inertia dyno, please send us some pictures to share.
