Suspension Spring Tester v1.1 for Windows XP, Vista, 7, 8, 10, 11

Computer Program, Electronics and Sensors to Measure Suspension (coils or sway bars) Spring Rates, Ride Height Force, Compressed Force, etc.

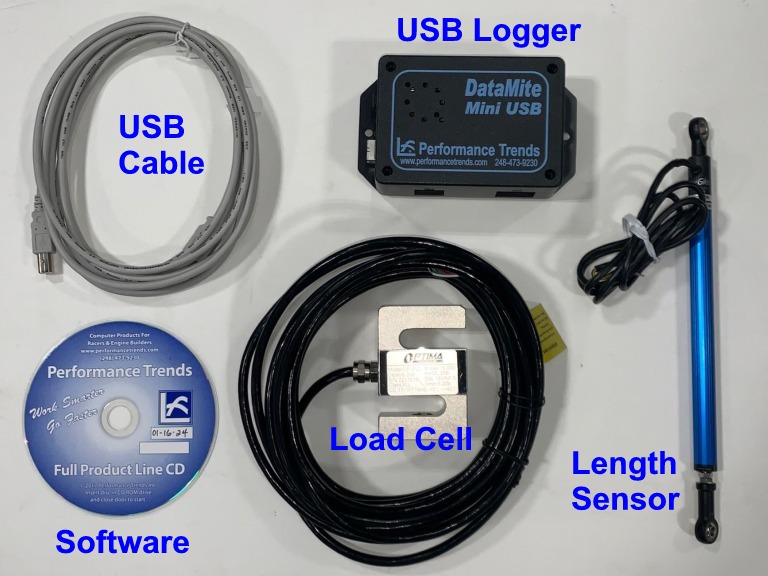

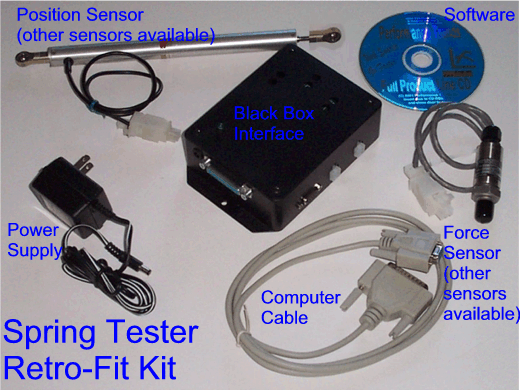

Our Suspension Spring Tester software works with our USB Black Box data logger, and is available as a kit to instrument your spring tester.  It lets you record, save, analyze, compare, graph, report and print your results, saving you time and providing accurate and professional results.  Results include:

  • Spring Rate
  • Force at Checking Height 1 (for example, static ride height)
  • Force at Checking Height 2
  • Height for a user defined spring force
  • Free
  • Linearity
  • Test Cycle Time, Test Open Rate, Test Closing Rate





Other features include:

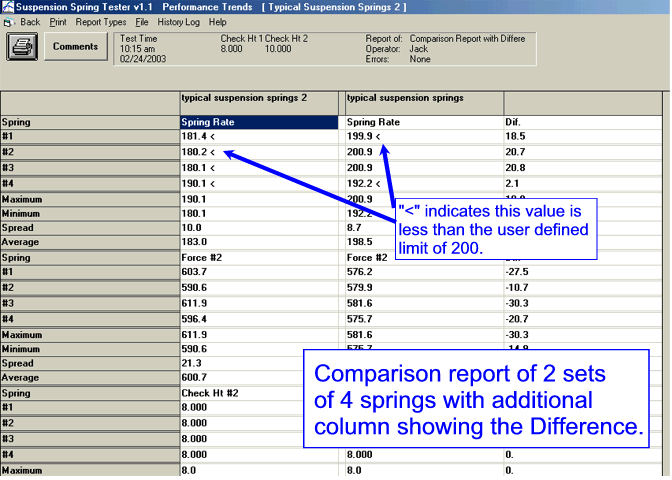

  • Program can screen all results for up to 3 user defined limits, like if Spring Rate falls outside a range of 300 to 350 lbs/inch.
  • You can search results (like a data base) for certain words in the comments, test date, Customer name, etc.
  • You can show results for Spring Height (like measured with a ruler) or Spring Compression (measured from Seated Spring Height).
  • Force sensor ranges up to 10,000 pounds.
  • Much more.





Screens below are for features in v1.1 C.038 release Dec 1, 2024

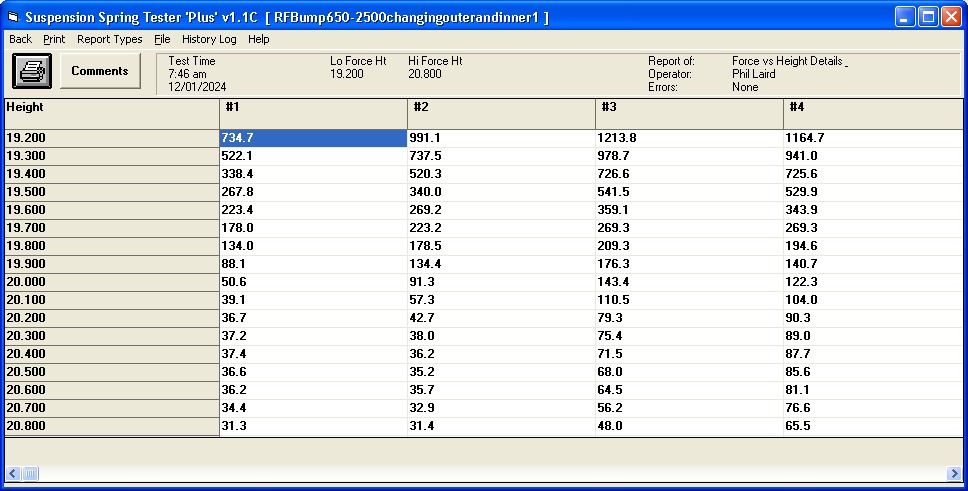

Force vs Height Details report showing forces of 4 different springs in this test file versus Free Height

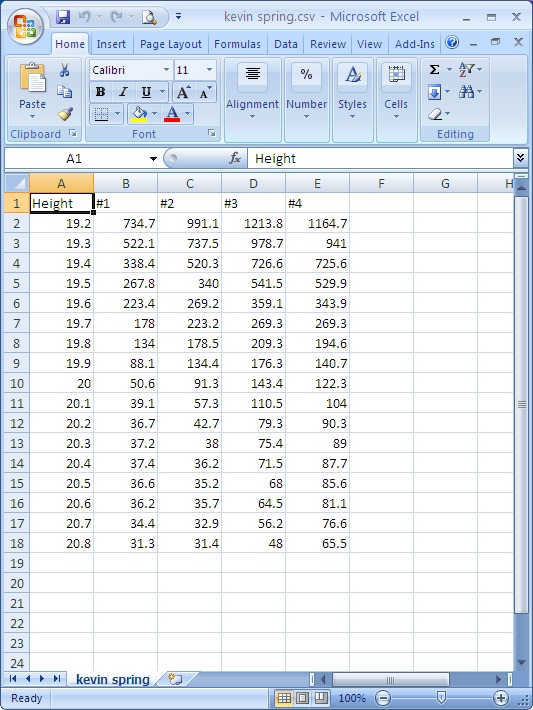

If you click on File at top of screen above, you can export this data as an ASCII file, with one option being a .csv file for use in Microsoft Excel (tm)

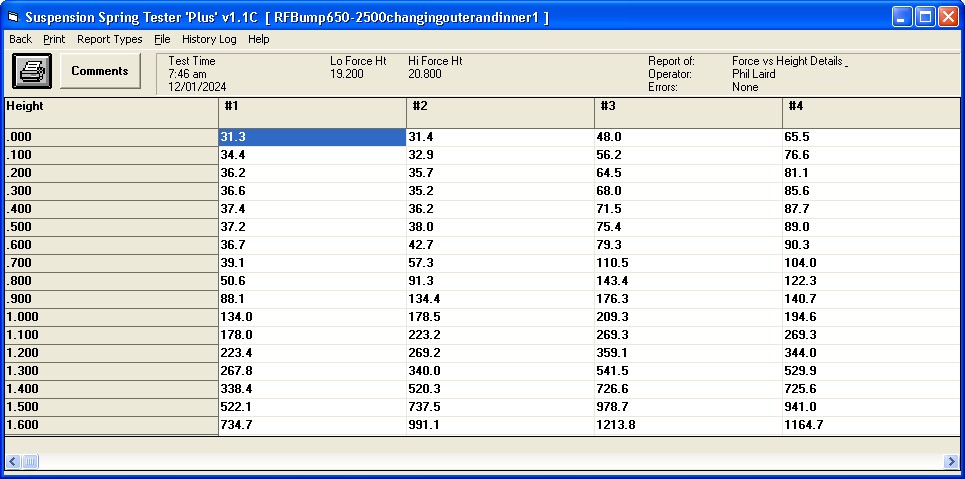

Force vs Height Details report showing forces of 4 different springs in this test file versus Compressed Height

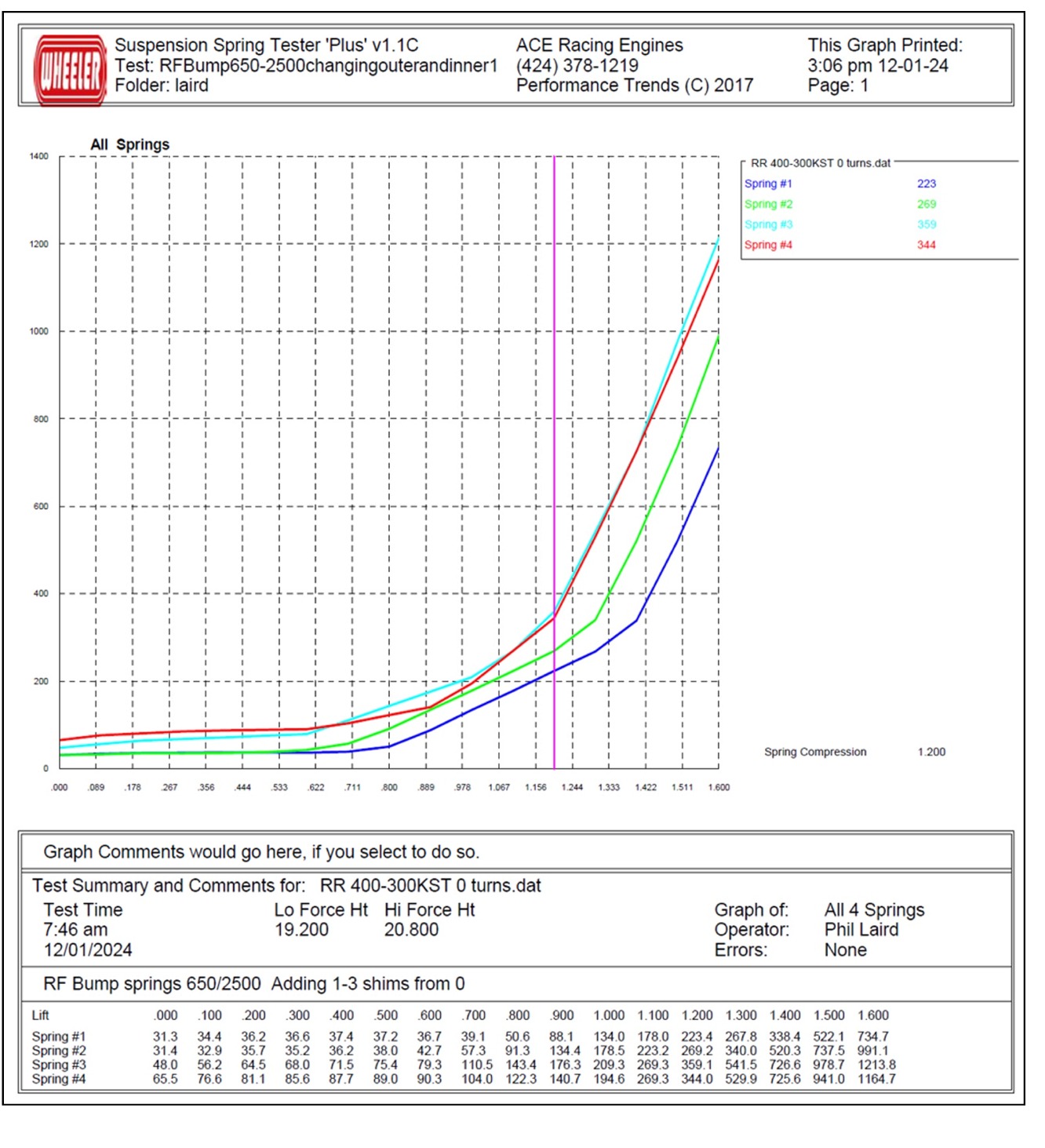

Printout of Graph of Force vs Compressed Height including the Data Table at the bottom, and pink cursor line showing data at cursor on right side



What You Need:

Computer with Windows XP, Vista, 7, 8, 10, 11



What You Get:

Program CD with user manual in PDF format on the CD. Example test files preloaded in the Example library for you to start with.  Downloadable version of software also available.


More Information, Download Demo:

to go to our Demo Downloading page to download a FREE Suspension Spring Tester Demo.



for Performance Trends Full Price List and ordering info.



To Order:

Call 248-473-9230. Visa or Mastercard accepted.
