Drag Racing Analyzer Pro v2.0 (with Top Speed Prediction)

Computer Program for Land Speed Record Racers and Engineers to Simulate, Predict and Analyze Full Power Acceleration and Top Speed Performance.

for Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11

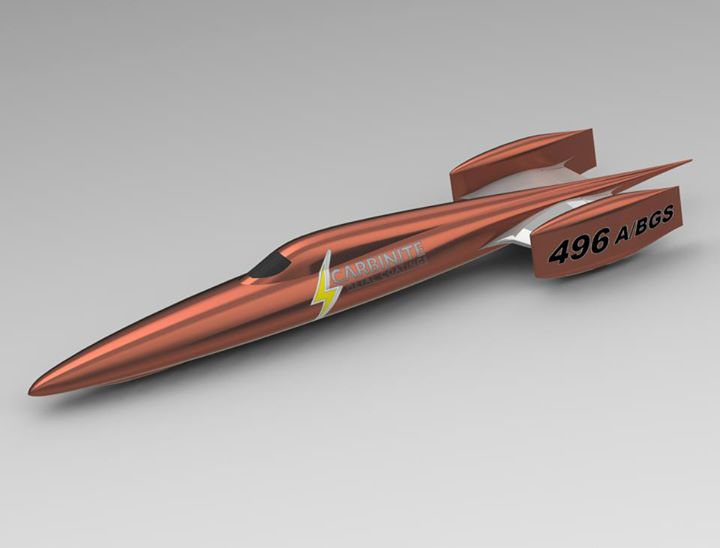

for the Carbiliner's facebook page, going for a 500 MPH "wheel driven" record.

Description

The Drag Racing Analyzer Pro is software for your personal computer to simulate a full power, standing start acceleration of most any vehicle you can design. However, it has several features to simulate Land Speed tracks like Bonneville and El Mirage.  It let's you play "what if" with engine power, weather, gear ratios, tire size, aerodynamic drag and down force, etc. and see the effect on MPH, tire spin, front and rear tire loads, and much more. "Its like having 20 miles of salt right in your computer."

to view the primary features of the Drag Racing Analyzer Pro.

The features described here are all available in the Drag Racing Analyzer Pro, not a special version of the program.  We are listing them here to highlight them for Land Speed Record Racers.  Features of particular interest to Land Speed Record Racers include:

  • Engine power can be modified during the run with 'ram air' effect from the hood scoop, plus other engine power modifiers.

  • Detailed plots of up to 22 different calculated results.

  • Import results from data loggers or other sources for making comparisons of simulated results to actual measured results.

  • Ability to create custom reports of results at various steps of time, distance or MPH. This allows you to check the effect of a modification on, say, 40 to 140 MPH times, or 500 to 1000 Ft times.

  • Chain calculations let you make several runs while the program automatically increments the spec of your choice.  See picture below.

  • Auto-Optimize feature (similar to Chain calculations), but you can try more specs at once as the program zeros in on your desired performance, like minimum ET, or the ET closest to (but slower than) 9.90.

The Pro will let you predict and understand how your vehicle performs with various combinations of parts. For example:

  • See trade-offs between better different gear ratios, tire size and shift RPMs for ultimate top speed between the timers.

  • Try different aerodynamics to see effect on top speed and front and rear down force on the tires to maintain control.

  • Calculate the Drag and Lift Coefficients from actual data.  See picture below.

  • All other features of the Drag Racing Analyzer Pro.

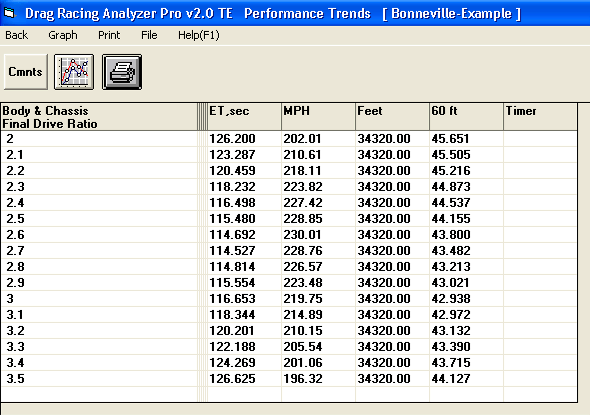

Find Best MPH with Chain Calculation changing final drive ratio.  A Final Drive of approximately 2.6 appears best.

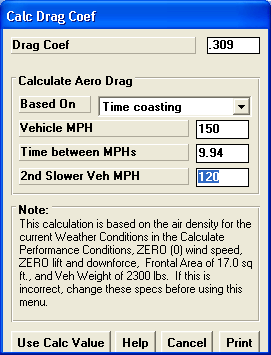

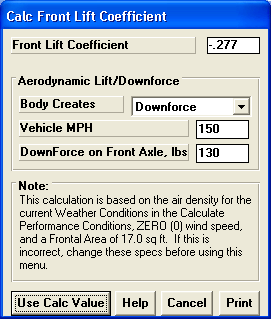

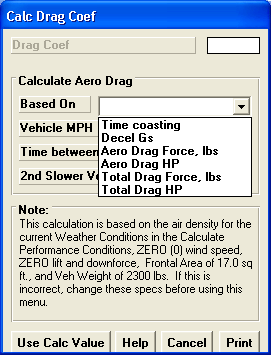

Calculate Aerodynamic Drag and Lift Coefficients from measured data



Output:

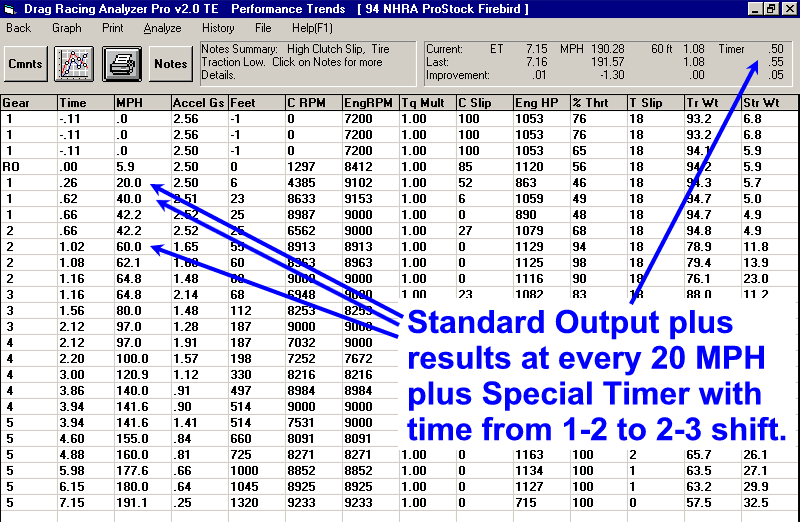

Shown below is the standard output screen including output (requested by the user at every 20 MPH) and the Special Timer (selected by this user for timing between the 1-2 shift and 2-3 shift).

Most any output can be graphed or exported as an ASCII file, including detailed graph data as listed here:

Data which can be Graphed:

  • Vehicle speed in MPH (great for top speed prediction)
  • Distance from start in ft (great for top speed prediction)
  • Acceleration rate in Gs
  • Engine RPM
  • Front Wheel RPM
  • HP lost in clutch/converter
  • Driveshaft RPM
  • Available engine HP
  • Input RPM to transmission
  • HP to overcome aero drag (great for top speed prediction)
  • Drive tire roll radius
  • % avail. HP being delivered
  • Controlled % clutch force
  • % vehicle wt on drive tires (great for top speed prediction)
  • % vehicle wt on steer tires (great for top speed prediction)
  • Torque mult. of conv
  • Clutch/converter speed ratio
  • Converter/clutch efficiency
  • Clutch HP + AeroDyn HP (great for top speed prediction)
  • Accel+Clutch+AeroDyn HP (great for top speed prediction)
  • Tire Slip in % (great for top speed prediction)



Team Engineer Features for Land Speed Record Racers:

For an additional $100, you can add the Team Engineer features, which include several advanced features, including these related to Land Speed Record simulation:

  • Special Preferences for more advanced features.  See picture below, lower right corner.
  • Advanced Bonneville Calcs will produce average speeds/MPHs over the standard Bonneville timers of 4 to 5 miles and the final 5.5 to 6.5 miles.  See picture below.
  • The Variable Aerodynamics lets you create a table of different drag and lift coefficients which can change at a particular MPH.  This could simulate changing an aerodynamic device to produce more downforce to maintain control at high speed.  See pictures below.

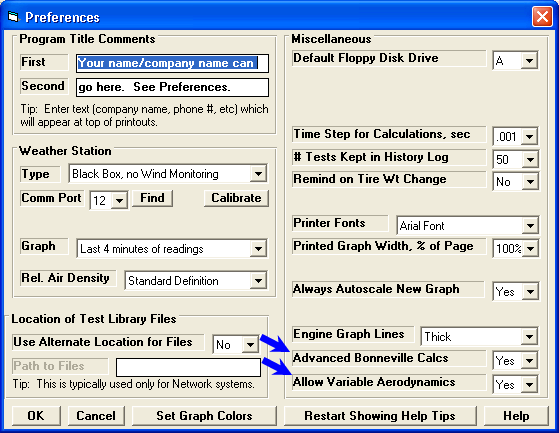

Special Bonneville Preferences

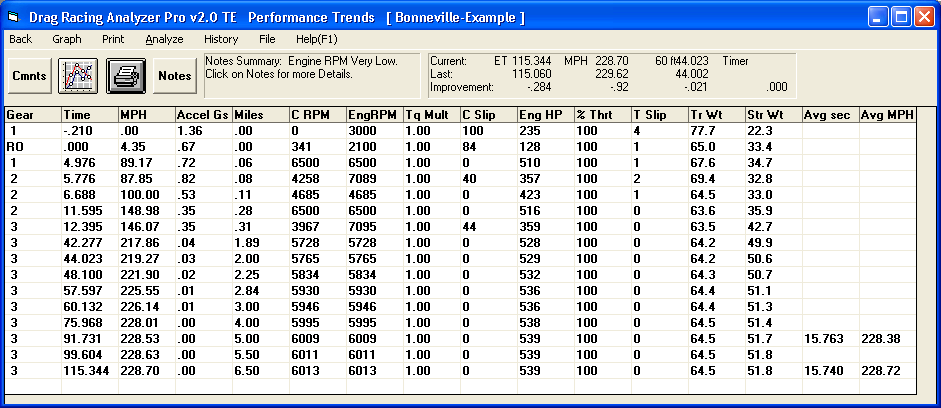

Advanced Bonneville Calcs shown in last to columns on right side

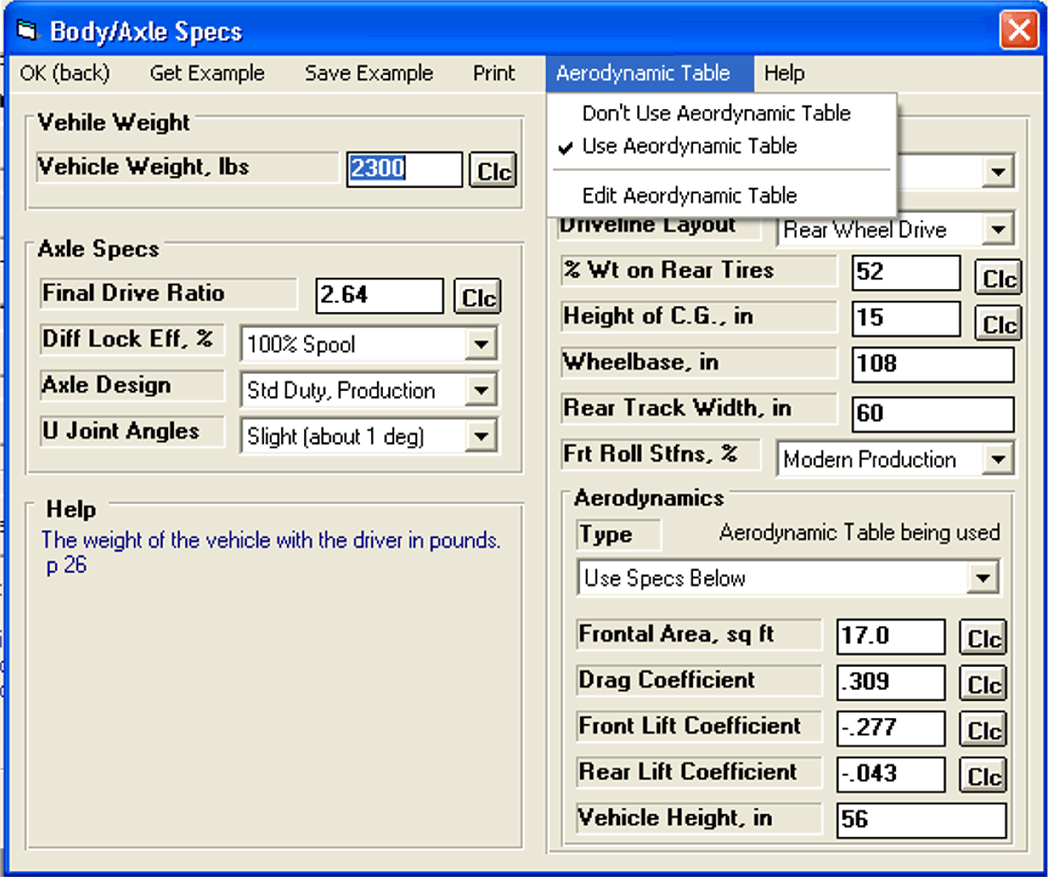

Using the Variable Aerodynamic Table Options

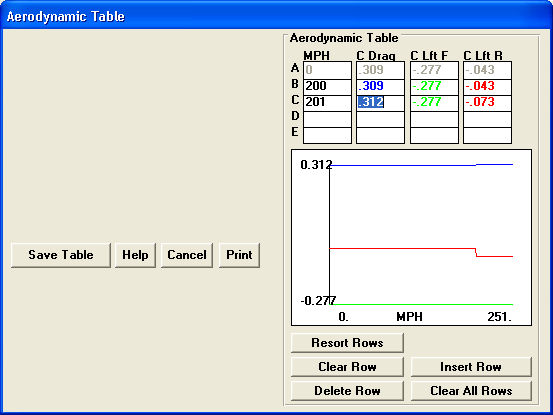

Aerodynamic Table showing a change at 200 to 201 MPH, like a "step" change.  If you enter a larger spread in MPH, the change will "ramp in" (be more gradual)

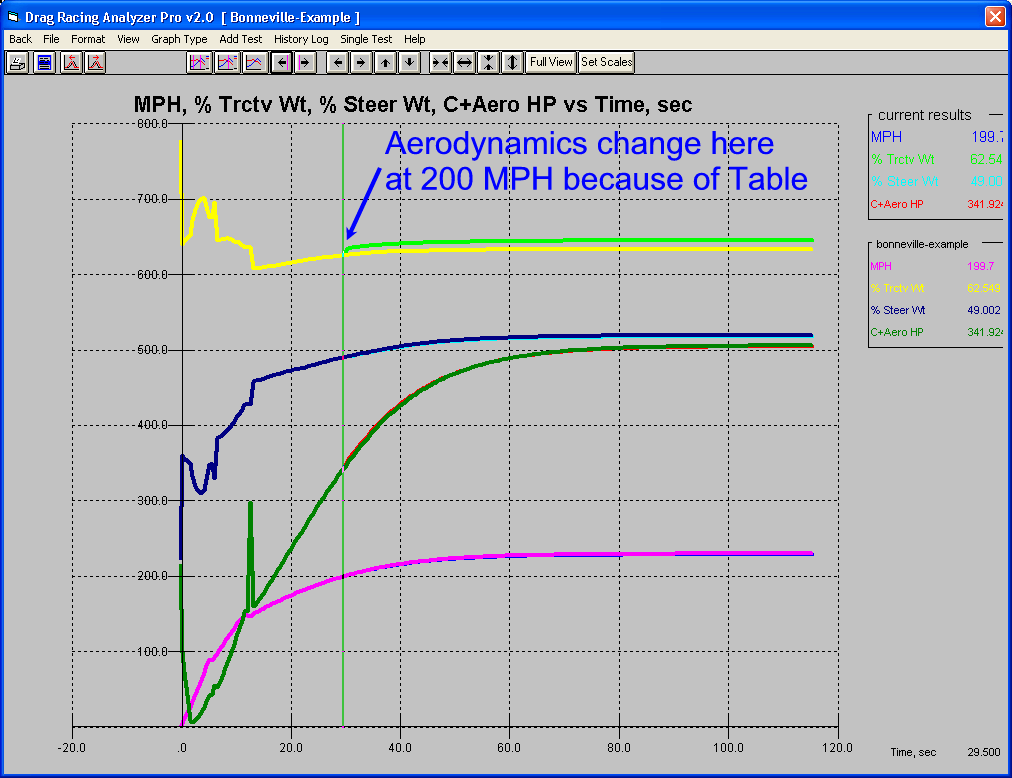

Graph showing results of the Variable Aerodynamics Table at 200 MPH



What You Need:

Computer with CD Rom Drive or internet connection, 20 meg hard drive space, and Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11.



What You Get:

Program CD disks with 160+ page illustrated manual as PDF file on CD with several examples showing how to use the program . Many example engines and components preloaded in libraries for you to start with. You get 2 license keys (code numbers) to have the program on 2 computers at the same time.  Additional sites can be added at a nominal charge.



More Information, Download Demo:

to go to our Demo Downloading page to download a FREE Drag Race Analyzer Pro Demo.




To Order:

Drag Race Analyzer Pro v2.0 Standard:

Our DOWNLOAD ONLY option. If you only want the unlocking code and DO NOT want a CD shipped, click on Add to Cart below. You will not be charged shipping.

$229.00
If you want a CD shipped to you, click on Add to Cart below. There will be shipping charges added to your order. You can still download the demo and get your unlock code sooner with this option.

$229.00 plus shipping
To order a CD with a PRINTED manual, click on Add to Cart. Manuals are included on the CD's but in PFD format. You can still download the demo and get your unlock code sooner with this option.

$259.00 plus shipping

Drag Race Analyzer Pro v2.0 Team Engineer:

Our DOWNLOAD ONLY option. If you only want the unlocking code and DO NOT want a CD shipped, click on Add to Cart below. You will not be charged shipping.

$329.00
If you want a CD shipped to you, click on Add to Cart below. There will be shipping charges added to your order. You can still download the demo and get your unlock code sooner with this option.

$329.00 plus shipping
To order a CD with a PRINTED manual, click on Add to Cart. Manuals are included on the CD's but in PFD format. You can still download the demo and get your unlock code sooner with this option.

$359.00 plus shipping

Call 248-473-9230. Visa and Mastercard accepted.

for more price and ordering info.
